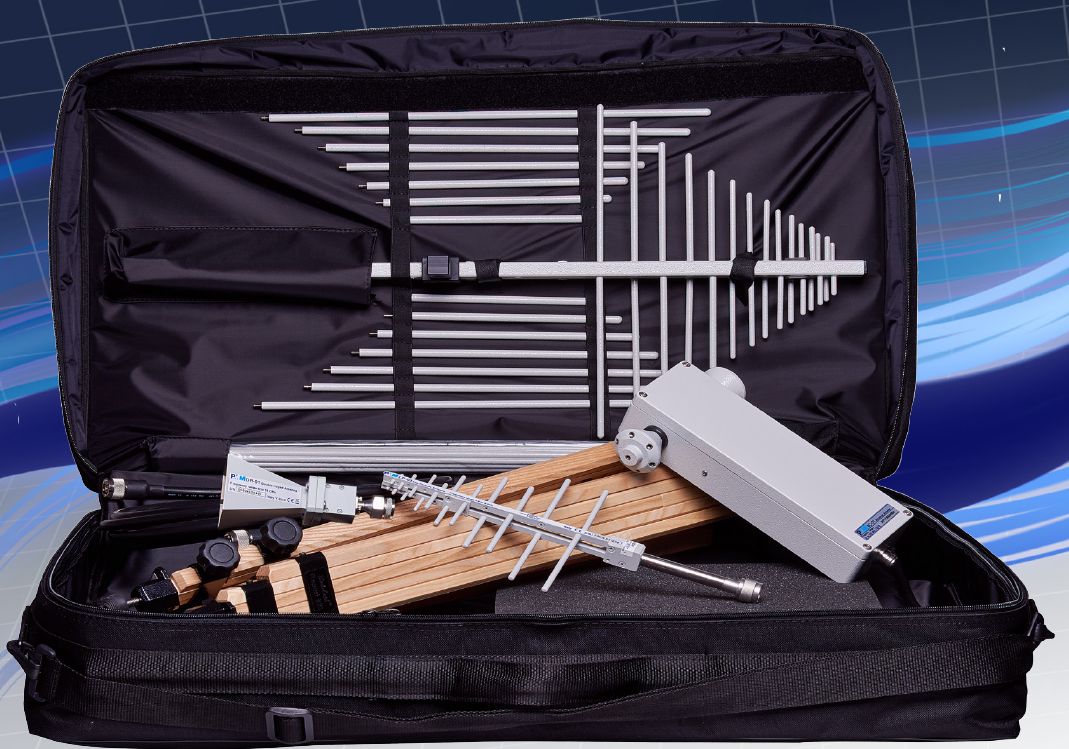

AS-06 Antenna Set 30 MHz to 18 GHz
Main Features
•30 MHz to 18 GHz frequency range
•Excellent antenna factor
•Tripod adapter for easy vertical-horizontal polarization change
•Individual calibration
•Robust, rustproof aluminium construction
•Lightweight

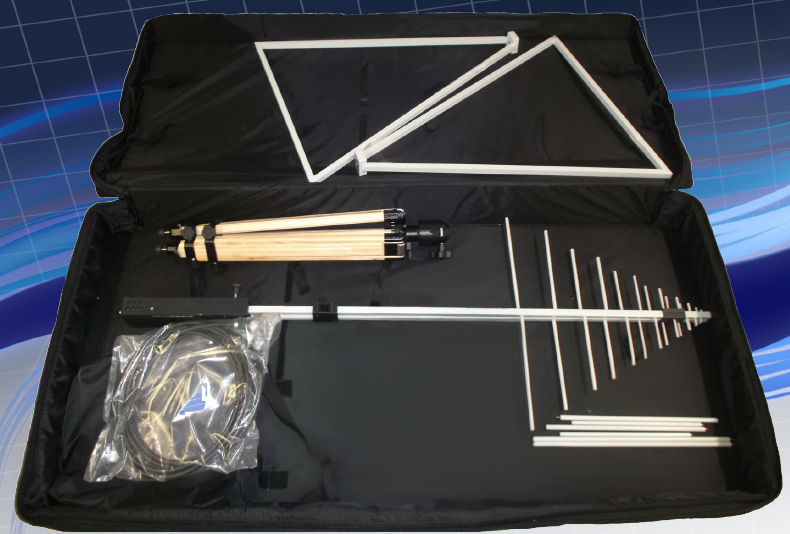

AS-07 Antenna Set 30 MHz to 6 GHz
Main Features
•30 MHz to 6 GHz frequency range
•Excellent antenna factor
•Tripod adapter for easy vertical-horizontal polarization change
•Individual calibration
•Robust, rustproof aluminium construction
•Lightweight

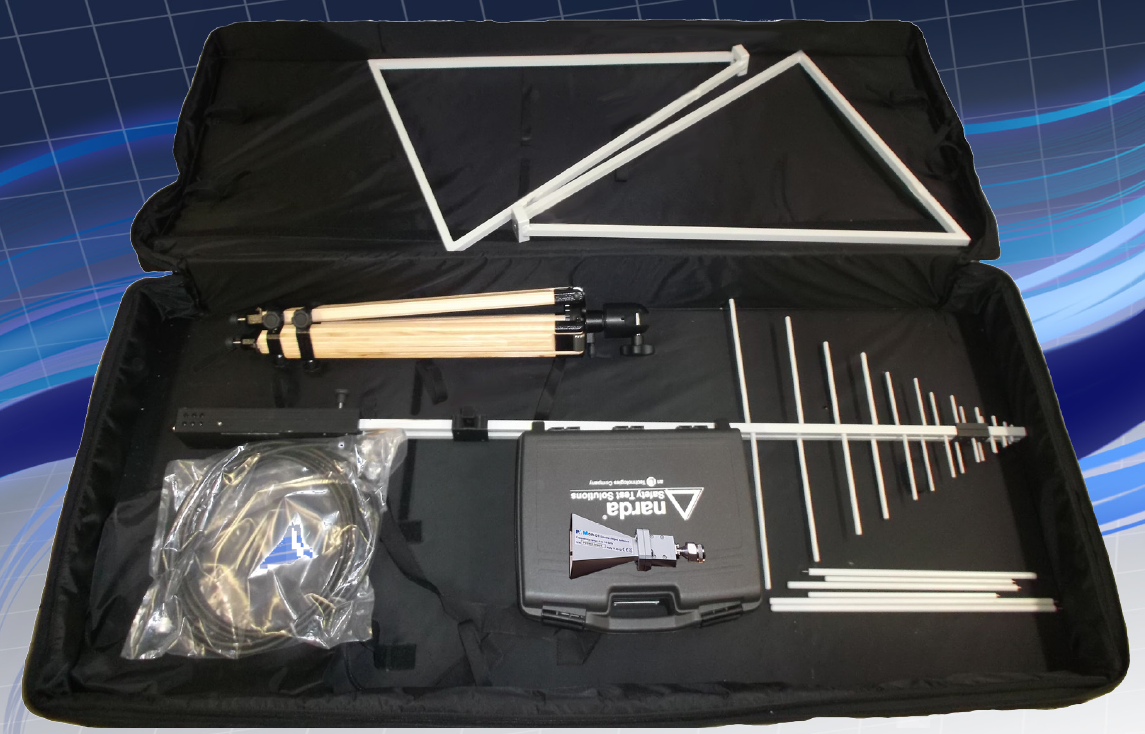

AS-08 Antenna Set 30 MHz to 18 GHz
Main Features
•30 MHz to 18 GHz frequency range
•Excellent antenna factor
•Tripod adapter for easy vertical-horizontal polarization change
•Individual calibration
•Robust, rustproof aluminium construction
•Lightweight

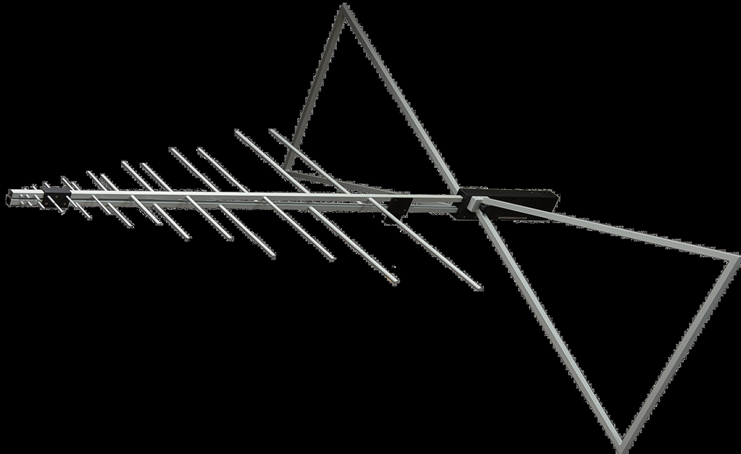

BL-01 Bi-Conical Log-periodic antenna 30 MHz to 6 GHz
Main Features
•30 MHz to 6 GHz frequency range
•Excellent antenna factor
•Tripod adapter for easy vertical-horizontal polarization change
•Individual calibration
•Robust, rustproof aluminium construction
•Lightweight


3160 Pyramidal Standard Gain Antenna
*Frequency Range: 960 MHz - 40 GHz.

Model 3160 Standard Gain Horns cover a multi-octave bandwidth.
All models in the series are linearly polarized, have medium gain, optimum half power beamwidth
 (equal in both horizontal and vertical planes), and low VSWR.

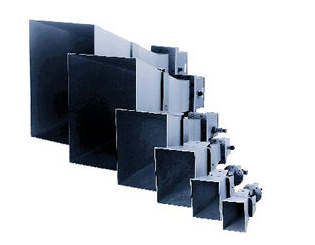

3161 Octave Horn Antenna
  • Constant Antenna Factor Over Frequency
  • Complete with Feed, Waveguide, Mount
  • Increased Power Dissipation
  • Optimal Beam width
  • Low VSWR

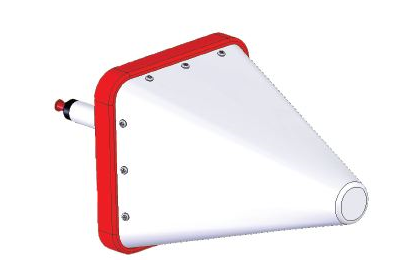

3186 Dual Stacked LPDA Antenna
  • 1 GHz - 18 GHz Frequency Range
  • 2:1 VSWR Average
  • Up to 20W Input Power
  • Constant E- and H-Plane Beamwidth
  • Flat Directivity

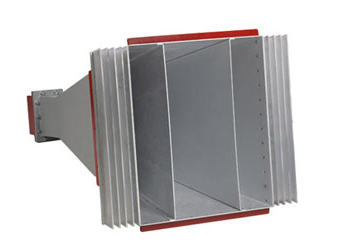

3162-01 Field Generating Antenna
* Frequency Range: 1.2 GHz - 1.4 GHz.

ETS-Lindgren's Model 3162-01 Pyramidal Type High Gain Horn
was specifically developed for the GMW 3097 and ES-XW7T-1A278-AC specifications
for automotive EMC components testing.

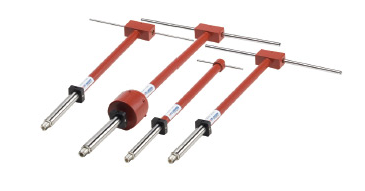

3121D Dipole
* Frequency Range: 30 MHz - 1 GHz.

The 3121D tuned dipole antenna's behavior approaches to the theoretically perfect half-wavelength resonant dipole.

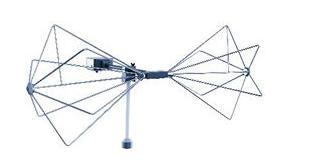

3104C Biconical Antenna
* Frequency Range: 20 MHz - 200 MHz.

The Model 3104C Biconical antenna has a traditional coaxial wound balun which provides a broad frequency range and moderate gain for both transmitting and receiving.


3140B Hybrid Log Periodic and Bowtie (BiConiLog)
* Frequency Range: 26 MHz - 3 GHz.

The Model 3140B BiConiLog is the newest in a series of hybrid antennas designed for broadband EMC RI (RI) measurements.
 The antenna exhibits exceptional gain between 26 MHz to 80 MHz, requiring <= 300 W to generate 10 V/m above 30 MHz with 80% AM at a distance of 3 meters.
 Above 80 MHz, the antenna's VSWR is less than 2:1.

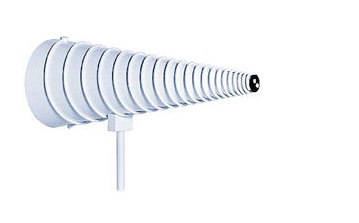

3101 Conical Log Spiral Antenna
* Frequency Range: 200 MHz - 1 GHz.

The Model 3101 Conical Log Spiral is made with spiral windings
of coaxial cable attached to the outside of a fiberglass cone.


3301C Active Monopole
* Frequency Range: 30 Hz - 50 MHz.

The Model 3301C Active Monopole Antenna is designed to provide reception of an electric field throughout its frequency range,
in a single band, without tuning or bandswitching.


6502 Active Shielded Loop Antenna
* Frequency Range: 10 kHz - 30 MHz.

The Model 6502 is an active receiving loop antenna.
 A preamplifier is built into the base and provides a 50-ohm output.

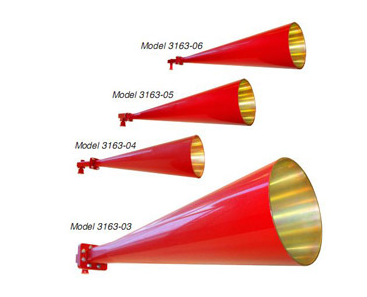

3163 High Gain Conical Horn Antennas
*Series Frequency Range: 4 GHz to 26.5 GHz.

The ETS-Lindgren Model 3163 Series Conical Horns are high gain (Over 16 dBi) antennas,
designed for use as feeds in tapered anechoic chambers,
as well as in applications requiring high gain and linear polarization.

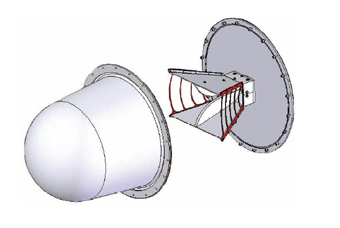

Custom Antenna Radome Enclosure
ETS-Lindgren's Custom Antenna Radome Enclosure offers a weatherproof environment for our most popular horn antennas.

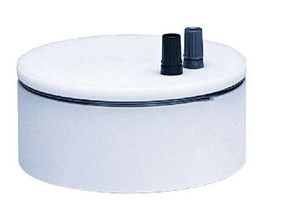

7603 Coil Antenna
* Frequency Range: 20 Hz - 50 kHz.

The Model 7603 is built from the specifications in the original MIL-STD-461 document.
The Model 7603 is a magnetic field generating coil 12.0 cm (4.75 in) diameter, made of delrin and wound with 10 turns of AWG-16 wire.

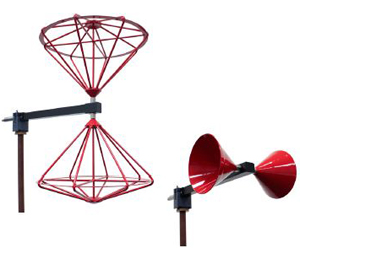

3180B Broadband Mini-Bicon Antenna

The ETS-Lindgren Model 3180B Broadband Mini-Bicon Antenna has been designed for optimal performance across
 the frequency range of 30 MHz – 1 GHz (cage elements)  and 30 MHz – 3 GHz (cone elements).
The Model 3180Bs uniquely designed elements provide a omnidirectional pattern, without the beam splitting.

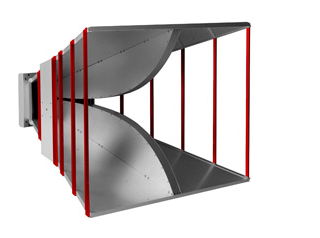

3106B Double-Ridged Guide Antenna
* Frequency 200 MHz - 2.5 GHz.

The Model 3106B Double-Ridged Waveguide Horn has a high gain
and excellent VSWR characteristics over its entire frequency range.

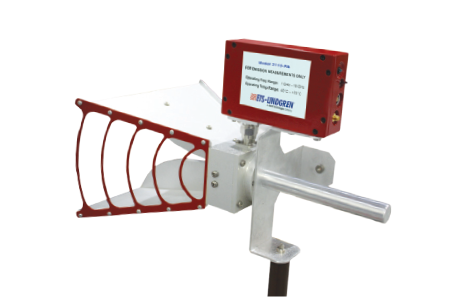

3115-PA
* Frequency Range: 1 GHz to 18 GHz.

ETS-LINDGRENS MODEL 3115-PA is our popular Model 3115, fitted with a pre-amplifier package and calibrated as a single unit.
 In this configuration, any possible mismatches between antenna and pre-amplifier are taken into account in the antenna factor (AF) which is provided with this unit.


VHA 9103 B
VHA 9103 B
Holder / Balun without telescopic dipole elements (for use with Biconical BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, FBAB 9177) [Foto of VHA 9103 B with BBA 9106]


HFBA 9122
HF-VHF Broadband balun / holder (0.1) 0.15 - 300 (500) MHz especially to measure very high field strength. BBAL 9136, BBA 9106, BBAK 9137, BBVU 9135 or BBUK 9139 biconical elements required.


VHBA 9123
VHBA 9123
Antenna Holder / Balun for Bicon. Broad Band Antenna (e.g. BBA 9106, BBAL 9136, BBAK 9137), 50 / 200 W, (better antenna factor below 50 MHz, also EMV application 100 W


VHBB 9124
Antenna Holder / Balun for Bicon. Broad Band Antenna 50:200 Ohm, (better antenna factor for lower frequency end) for use with BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, FBAB 9177, FBAL 9178
[VSWR]


VHBC 9133
VHBC 9133
Antenna holder / balun 50:200 Ohm, 1 kW, for biconical or collapsible elements (BBA 9106, BBAL 9136, BBFA, Triangle, FBAA, FBAB, FBAL 9178)
[VSWR]


-VHBD9134
-VHBD9134
High power antenna holder / balun 50:200 Ohm, 2.5 kW, 20-200 MHz for biconical or collapsible elements BBFA 9146, N-connector
[VSWR]


VHBD 9134 OPT 7/16
VHBD 9134 OPT 7/16
Option: 7/16 connector


VHBD9134-4
VHBD9134-4
4 kW high power antenna holder / balun 50:200 Ohm, 20-200 MHz for BBAL 9136 or BBFA 9146, 7/16-female connector.


UBAA9114
UBAA9114
Broadband Balun/Holder 4:1, 30-1000 MHz, 5 W, low loss, BBVU 9135, BBUK 9139, BAOC 9216 or BBOC 9217 elem. Required [VSWR] [Picture]


UBAA9115
UBAA9115
Broadband Balun/Holder 4:1, 30-1000 MHz, 5 W, extremely high symmetry, BBVU 9135, BBUK 9139, BAOC 9216 or BBOC 9217 elem. Required
[VSWR] [Picture]


BBA 9106
BBA 9106
Biconical Elements, 30-300 MHz, requires VHA 9103 B, VHBC, VHBB or VHBA [Picture]


BBAL 9136
BBAL 9136
Biconical Elements, 20-200 MHz, requires VHA 9103 B, VHBC, VHBB or VHBA


BBAK 9137
BBAK 9137
Biconical Elements, 45-450 MHz broad band, requires VHA 9103, VHBB or VHBA


BBVK 9138
BBVK 9138
Biconical Elements, 60-600 MHz broad band, requires VHA 9103, VHBB or VHBA


BBVU 9135
BBVU 9135
Biconical Elements, (30)100-1000 MHz (like VUBA), for UBAA 9114/9115


BBUK 9139
BBUK 9139
Biconical Elements, 160-1200 MHz broad band (like UBA), for UBAA 9114/9115
Collapsible or open Conical elements


BBAE 9179
Foldable elements for immunity for automotive applications, optimized for 1 m measurement distance, max. diameter 150 cm, 20-220 MHz suitable for: VHBC 9133, VHBD 9134, VHBD 9134-4. Some Baluns may need a mechanical modification!


BBFA 9146
BBFA 9146
Large collapsible aluminium Elements with extensions up to 4 m


FBAB 9177
FBAB 9177
Collapsible Biconical Elements 30 – 300 MHz (instead of BBA 9106)


FBAL 9178
FBAL 9178
Large Collapsible Biconical Elements 20 – 200 MHz (instead of BBAL 9136)


BAOC 9216
BAOC 9216
Open Conical Elements, 160-1200 MHz broad band, for UBAA 9114/9115


BBOC 9217
BBOC 9217
Open Conical Elements, (30)100-1000 MHz broad band, for UBAA 9114/9115


UHALP 9108 A
 Log.-Periodic Antenna, alum. Tubing, 250 – 2400 MHz, low loss, 1 kW power
[Dimensions] [Radiation Pattern] [Correction] [VSWR] [Fieldstrength] [Picture]


VUSLP 9111-1000
Log.-Per. Antenna, aluminium tubing, 1000 – 3000 (4000) MHz, low loss, 1 kW.


VUSLP 9111-400
Log.-Periodic Antenna, alum. Tubing, 400 - 3000 (4000) MHz, low loss, 1 kW.


VUSLP 9111
Log.-Periodic Antenna, alum. Tubing, 200 – 2300 (4000) MHz, low loss, 1 kW power
[Radiation Pattern] [Correction] [VSWR] [Fieldstrength] [Picture]


VUSLP 9111 B
Log.-Periodic Antenna, alum. Tubing, (180) 200 - 3000 (4000) MHz, low loss, 1 kW power
[Correction] [Fieldstrength]


VUSLP 9111 E
Log.-Per. Antenna, aluminium tubing, 1 kW power, 70 (65)-3000 (4000) MHz. Recommended adapter: KG 9201. EN 61000-4-3
[Correction] [VSWR] [Fieldstrength]


VULP 9118 A
Log.-Per. Antenna, aluminium tubing, 1 kW power, 180 -1500 (2000) MHz
[Dimensions] [Correction] [VSWR] [Fieldstrength]

VULP 9118 B
Log.-Per. Antenna, aluminium tubing, 1 kW power, 160-1500 (2000) MHz
[Dimensions] [Correction] [VSWR] [Fieldstrength] [Picture]
