 ETS (16) Schwarzebeck (50) A.H (0) PMM (4) -- (0)
 -- (0)
Total 50

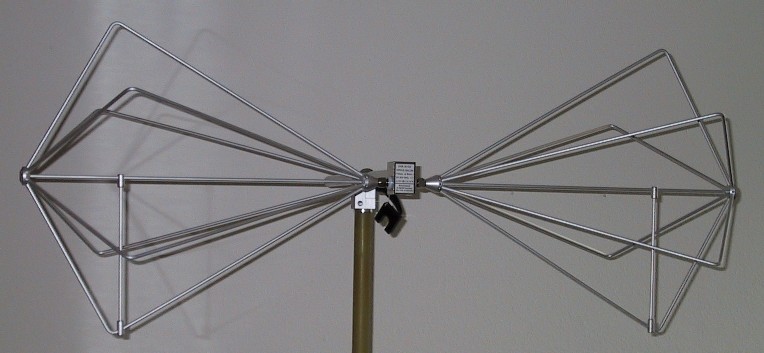

VHA 9103 B
VHA 9103 B
Holder / Balun without telescopic dipole elements (for use with Biconical BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, FBAB 9177) [Foto of VHA 9103 B with BBA 9106]
HFBA 9122
HFBA 9122
HF-VHF Broadband balun / holder (0.1) 0.15 - 300 (500) MHz especially to measure very high field strength. BBAL 9136, BBA 9106, BBAK 9137, BBVU 9135 or BBUK 9139 biconical elements required.

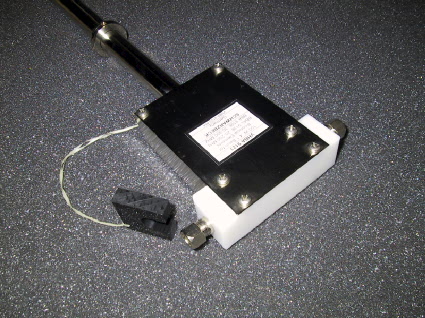

VHBA 9123
VHBA 9123
Antenna Holder / Balun for Bicon. Broad Band Antenna (e.g. BBA 9106, BBAL 9136, BBAK 9137), 50 / 200 W, (better antenna factor below 50 MHz, also EMV application 100 W
 [Picture]
VHBB 9124
VHBB 9124
Antenna Holder / Balun for Bicon. Broad Band Antenna 50:200 Ohm, (better antenna factor for lower frequency end) for use with BBA 9106, BBAL 9136, BBAK 9137, BBVK 9138, FBAB 9177, FBAL 9178
[VSWR]
VHBC 9133
VHBC 9133
Antenna holder / balun 50:200 Ohm, 1 kW, for biconical or collapsible elements (BBA 9106, BBAL 9136, BBFA, Triangle, FBAA, FBAB, FBAL 9178)
[VSWR]
-VHBD9134
-VHBD9134
High power antenna holder / balun 50:200 Ohm, 2.5 kW, 20-200 MHz for biconical or collapsible elements BBFA 9146, N-connector
[VSWR]
VHBD 9134 OPT 7/16
VHBD 9134 OPT 7/16
Option: 7/16 connector


VHBD9134-4
VHBD9134-4
4 kW high power antenna holder / balun 50:200 Ohm, 20-200 MHz for BBAL 9136 or BBFA 9146, 7/16-female connector.


UBAA9114
UBAA9114

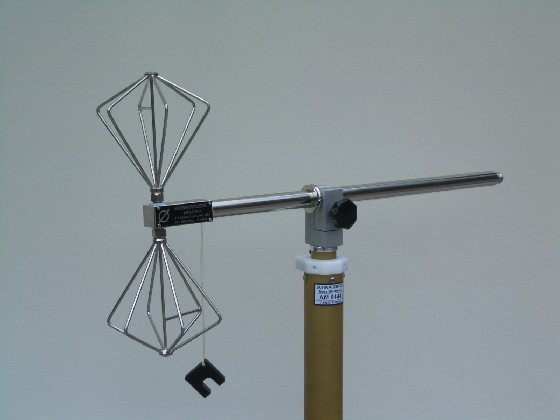

Broadband Balun/Holder 4:1, 30-1000 MHz, 5 W, low loss, BBVU 9135, BBUK 9139, BAOC 9216 or BBOC 9217 elem. Required [VSWR] [Picture]

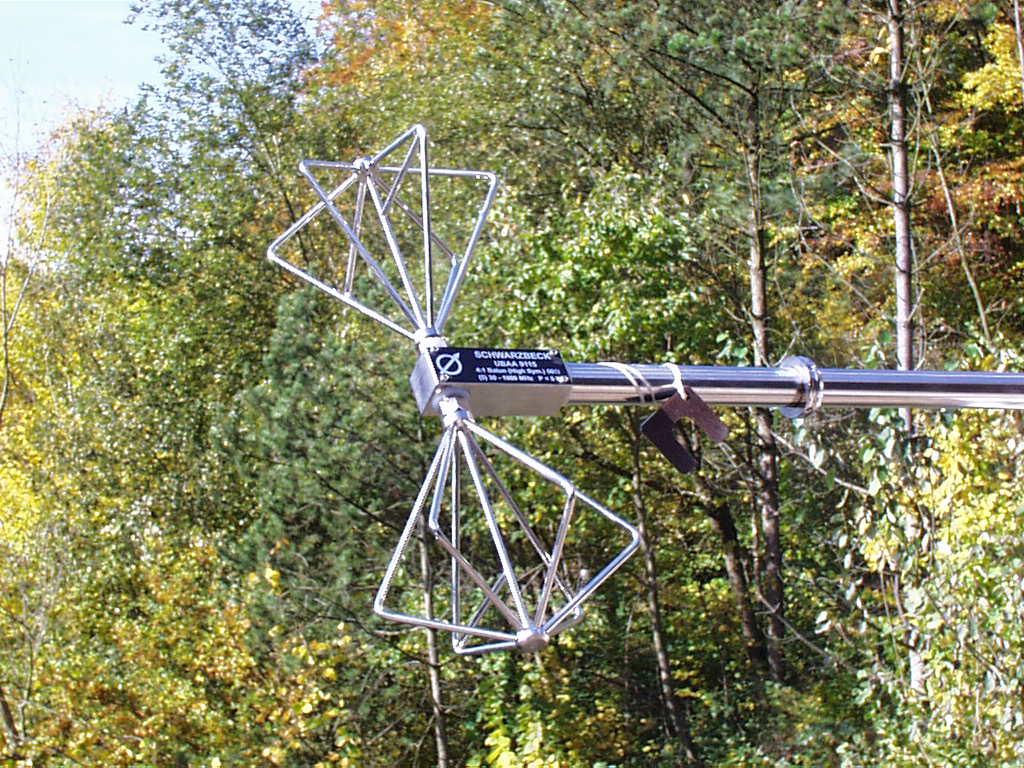

UBAA9115
UBAA9115
Broadband Balun/Holder 4:1, 30-1000 MHz, 5 W, extremely high symmetry, BBVU 9135, BBUK 9139, BAOC 9216 or BBOC 9217 elem. Required
[VSWR] [Picture]
Biconical elements
BBA 9106
BBA 9106
Biconical Elements, 30-300 MHz, requires VHA 9103 B, VHBC, VHBB or VHBA [Picture]
BBAL 9136
BBAL 9136
Biconical Elements, 20-200 MHz, requires VHA 9103 B, VHBC, VHBB or VHBA


BBAK 9137
BBAK 9137
Biconical Elements, 45-450 MHz broad band, requires VHA 9103, VHBB or VHBA


BBVK 9138
BBVK 9138
Biconical Elements, 60-600 MHz broad band, requires VHA 9103, VHBB or VHBA


BBVU 9135
BBVU 9135
Biconical Elements, (30)100-1000 MHz (like VUBA), for UBAA 9114/9115


BBUK 9139
BBUK 9139
Biconical Elements, 160-1200 MHz broad band (like UBA), for UBAA 9114/9115
Collapsible or open Conical elements


BBAE 9179
BBAE 9179
Foldable elements for immunity for automotive applications, optimized for 1 m measurement distance, max. diameter 150 cm, 20-220 MHz suitable for: VHBC 9133, VHBD 9134, VHBD 9134-4. Some Baluns may need a mechanical modification!


BBFA 9146
BBFA 9146
Large collapsible aluminium Elements with extensions up to 4 m


FBAB 9177
FBAB 9177
Collapsible Biconical Elements 30 – 300 MHz (instead of BBA 9106)


FBAL 9178
FBAL 9178
Large Collapsible Biconical Elements 20 – 200 MHz (instead of BBAL 9136)


BAOC 9216
BAOC 9216
Open Conical Elements, 160-1200 MHz broad band, for UBAA 9114/9115


BBOC 9217
BBOC 9217
Open Conical Elements, (30)100-1000 MHz broad band, for UBAA 9114/9115
Logarithmic Periodic Broadband Antennas

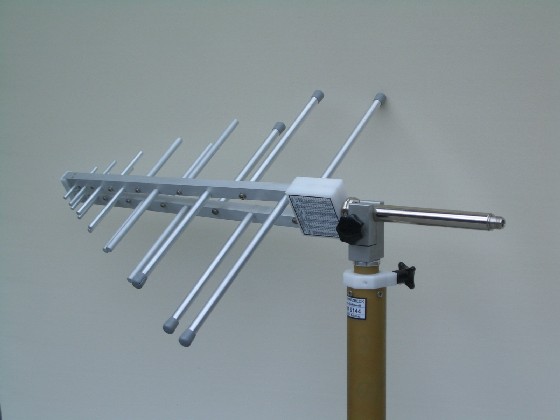

UHALP 9108 A
UHALP 9108 A
 Log.-Periodic Antenna, alum. Tubing, 250 – 2400 MHz, low loss, 1 kW power
[Dimensions] [Radiation Pattern] [Correction] [VSWR] [Fieldstrength] [Picture]
VUSLP 9111-1000
VUSLP 9111-1000
Log.-Per. Antenna, aluminium tubing, 1000 – 3000 (4000) MHz, low loss, 1 kW.


VUSLP 9111-400
VUSLP 9111-400
Log.-Periodic Antenna, alum. Tubing, 400 - 3000 (4000) MHz, low loss, 1 kW.

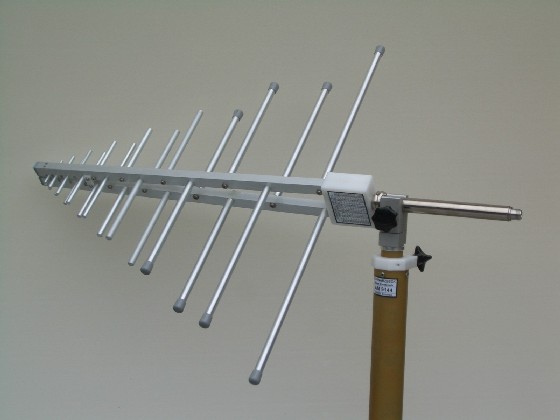

VUSLP 9111
VUSLP 9111
Log.-Periodic Antenna, alum. Tubing, 200 – 2300 (4000) MHz, low loss, 1 kW power
[Radiation Pattern] [Correction] [VSWR] [Fieldstrength] [Picture]
VUSLP 9111 B
VUSLP 9111 B
Log.-Periodic Antenna, alum. Tubing, (180) 200 - 3000 (4000) MHz, low loss, 1 kW power
[Correction] [Fieldstrength]
VUSLP 9111 E
VUSLP 9111 E
Log.-Per. Antenna, aluminium tubing, 1 kW power, 70 (65)-3000 (4000) MHz. Recommended adapter: KG 9201. EN 61000-4-3
[Correction] [VSWR] [Fieldstrength]
VULP 9118 A
VULP 9118 A
Log.-Per. Antenna, aluminium tubing, 1 kW power, 180 -1500 (2000) MHz
[Dimensions] [Correction] [VSWR] [Fieldstrength]

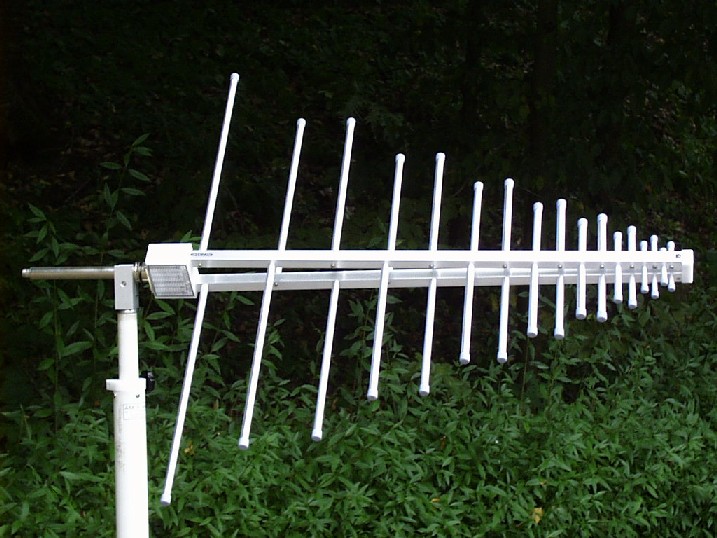

VULP 9118 B
VULP 9118 B
Log.-Per. Antenna, aluminium tubing, 1 kW power, 160-1500 (2000) MHz
[Dimensions] [Correction] [VSWR] [Fieldstrength] [Picture]
VULP 9118 C
VULP 9118 C
Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz
[Dimensions] [Radiation Pattern] [VSWR]
VULP 9118 D
VULP 9118 D
Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 –1500 (1800) MHz
[Dimensions] [Correction] [VSWR] [Fieldstrength]
VULP 9118 E
VULP 9118 E
Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz.
[Dimensions] [Radiation Pattern] [VSWR] [Fieldstrength]
VULP 9118 E special
VULP 9118 E special
Nearly identical gain as VULP 9118 E but with reduced width. Special = folded longest elements.
[Correction] [Fieldstrength] [Picture]
VULP 9118 E High Power
VULP 9118 E High Power
Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector, 75 (50)-1500 MHz.
[Dimensions] [Correction] [Fieldstrength]
VULP 9118 F
VULP 9118 F
Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 55 -1800 MHz
[Dimensions]
VULP 9118 G
VULP 9118 G
Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz
[Dimensions] [Correction] [Fieldstrength]
VULP 9118 D/E/F/G Special
VULP 9118 D/E/F/G Special
Nearly identical gain as VULP 9118 D/E/F/G but with reduced width. Extra charge added to the basic model. Special = folded longest elements.
 VULP 9118 D special
VULP 9118 H
VULP 9118 H
Log.-Per. Antenna, aluminium tubing, 1 kW power, (26) 30 - 1500 (1800) MHz, N-connector gain 6 dBi, VSWR<3, width 5.2 m, length 4.8 m, weight 35 kg.
[Radiation Pattern] [Manual]
VULP 9118 H Option WP
VULP 9118 H Option WP
Option: grey coating and sealing for outdoor use


USLP 9142
USLP 9142
UHF – SHF Log. – Per. Antenna, 0.7 – 5 (8) GHz
[Dimensions] [Radiation Pattern] [VSWR] [Fieldstrength]
USLP 9143
USLP 9143
UHF – SHF Log. – Per. Antenna, (0.25) 0.3 – 5 (7)GHz
[Dimensions] [Radiation Pattern] [Correction] [VSWR] [Fieldstrength]
USLP 9143 B
USLP 9143 B
UHF – SHF Log. – Per. Antenna, (0.18) 0.2 – 7 (8)GHz
[Correction]
ESLP 9145
ESLP 9145
UHF – EHF Log. – Per. Antenna, (0.7) 1- 18 (20) GHz, N-connector. A new low attenuation cover allows measurements with radome. For older models with S/N<184 check manual!
[Radiation Pattern] [VSWR] [Fieldstrength] [Picture]
XSLP 9142
XSLP 9142
Dual Polarized UHF-SHF Log.-Per. Antenna, 800 MHz – 3(5) GHz, 50 W
[Radiation Pattern] [Picture]
XSLP 9143
XSLP 9143
Dual Polarized UHF-SHF Log.-Per. Antenna, 300 MHz – 3(5.5) GHz, 50 W
[Radiation Pattern]
STLP 9128 C
STLP 9128 C
Stacked double Log.-Per. Antenna, typ. gain: 9 dBi, alum. Tubing, high power, (150) 200 - 1500 (4000) MHz, N-connector 1 kW
[Radiation Pattern] [Correction] [VSWR] [Picture]
STLP 9128 C Opt 7/16
STLP 9128 C Opt 7/16
Option: with 7/16-connector 3 Kw


STLP 9128 C Opt. 13-30
STLP 9128 C Opt. 13-30
Option: with [13-30-connector] limited to 2500 MHz but higher power up to 8 kW including adapter similar to AA 9202
[Picture]
STLP 9128 D
STLP 9128 D
Stacked double Log.-Per. Antenna, typ. gain: 9 dBi, alum. Tubing, high power, 80 -3000 (4000) MHz, N-connector, [fastlinks] for quick removal of the rear parts of the antenna. [Video: Fastlinks] Recommended Adapter: AA 9209.
