EMI Test Receiver (7) 방사측정RE/Antenna (3) 전도방출CE/LISN (6) 전도성내성CS (1)
Total 27
Narda Safety Test Solutions(PMM) 회사소개
NARDA Safety Test Solutions is a global leader in the development and production
of measuring equipment for electromagnetic fields, owning more than 95% of
all published patents for measuring such fields. We are a highly innovative company
that regularly develops new technologies and instruments to cover the most demanding
applications in Safety (EMF) and Electromagnetic Compatibility (EMC).

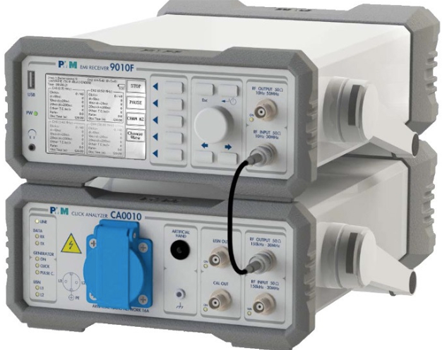

EMI TEST RECEIVER, 9010F
전도방출(CE)을 위한 30MHz 범위 까지는 CISPR 16-1-1에 준한 Full Compliance 장비.
30MHz~3GHz. Chamber 조건이 없이도 100% 규격시험이 가능한 전도방출 Reciever
시험소와 100% 일치되는 시험결과 얻음. 9010F Version은 FFT 기술을 채택해 기존의 Receiver의
측정 속도 보다 300배 빠름. <비교측정동영상>




Click Meter

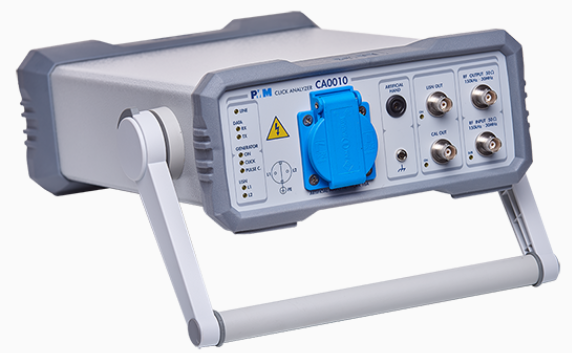

PMM Click Meter CA0010

CISPR 16-1-1, CISPR 14-1에 준하는 150KHz/ 500KHz/ 1.4MHz/ 30 MHz 4개의 독립된 주파수

채널 동시 측정하는 4채널 클릭 장비입니다. 단상 16A LISN이 내장되어 있어서 구성이 컴팩트

하며, PC 없이 사용 가능하며 PC와 연동하여 사용 시 무상 소프트웨어와 함께 사용이 가능합니다.

조작이 쉽고 시험 시작 버튼만 누르면 클릭율(N)선정, 예외규정적용(Exception), 클릭율에 따른

리미트 지정(Lq), 자동Reporting, 자동적부판정(Pass/Fail) 등이 자동으로 진행 되는 시스템 입니다.

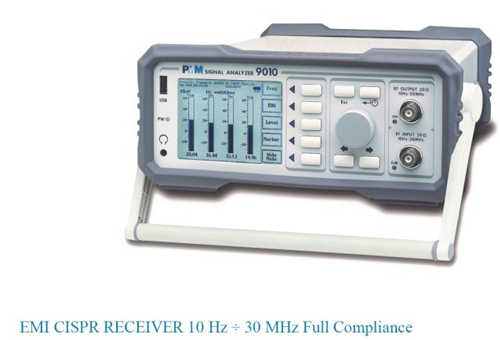

EMI TEST RECEIVER, PMM9010
PMM 9010 EMC/EMI Receiver 10Hz - 30 MHz
CISPR16-1-1에 맞춰 만들어진 장비로, Fully Digital fully CISPR 장비입니다.
챔버 조건이 없어도 시험 가능한 전도성방출(CE) 시험을 위한 10Hz~30MHz  기본장비.
그리고 전자파방사장해(RE)의 위해서는 Extension unit을 연결하면 3GHz, 6GHz, 18GHz
확장이 가능. Digital 방식을 채택하여 빠른 속도와 Aging 현상이 없는 아주 안정적인
EMI Test Receiver. < 옵션으로 Click 측정 가능 CISPR14-1>

PMM9010 Base unit up to 30MHz
PMM9030 Extension up to 3GHz
PMM9060 Extension up to 6GHz
PMM9180 Extension up to 18GHz

***규격***
CISPR11(의료기,산업),CISPR15(조명)
CISPR22(가정용),CISPR25(자동차)
그 외 국제 규격.


EMI TEST RECEIVER, PMM9030/9060/9018 Extension up to 3GHz
Extension Units to PMM 9010
CISPR 16-1-1에 준한 장비로, 9010(30MHz CE전용)에 Fiber Optical Cable로 연결되어
주파수를 각각 3GHz, 6GHz, 18GHz로 확장 할 수 있는 Extension Unit 제공.
Fiber Optical Cable로 연결되어 Cable Loss가 전혀 없어, Aging에 따른 Factor의 변화가
없으며, 사용하기 편한 S/W는 주기적으로 제조사에서 업데이트가 이뤄지며, 이를 홈페이지
에서 다운로드 받을 수 있음.

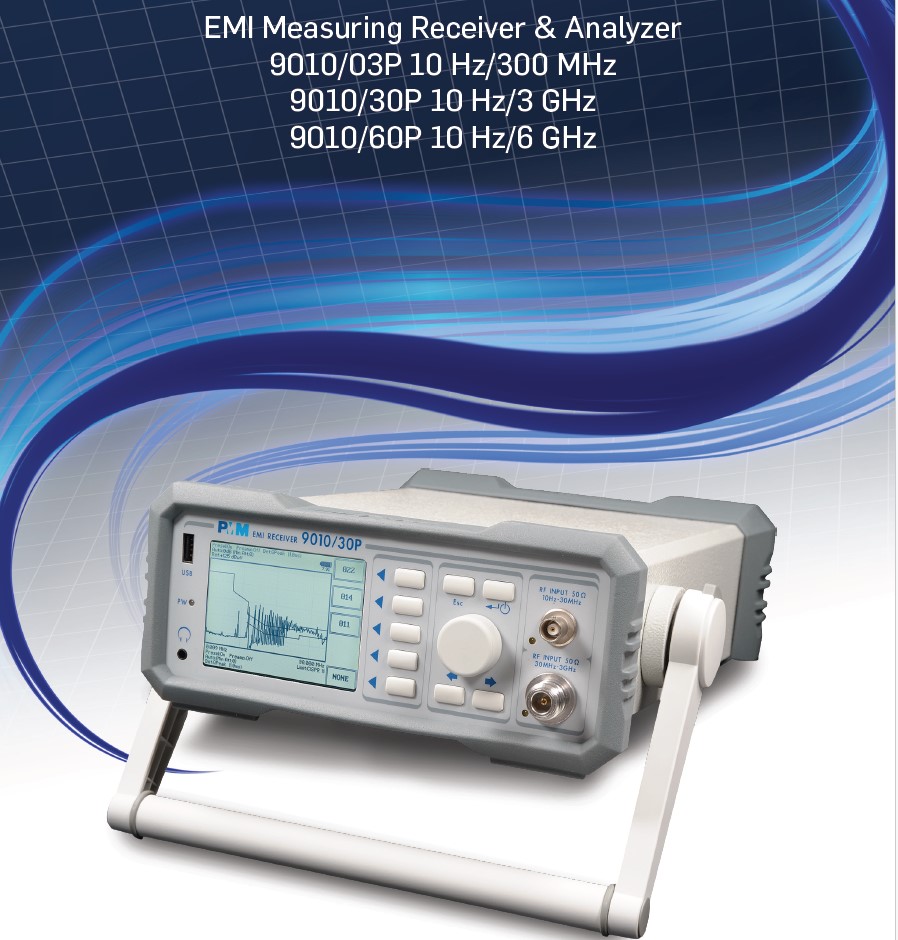

EMI TEST RECEIVER, 9010/30P up to 3GHz 9010/60P up to 6GHz
Full/Pre-Compliance EMI TEST RECEIVER up to 3GHz or 6GHz
전도방출(CE)을 위한 30MHz 범위 까지는 CISPR 16-1-1에 준한 Full Compliance 장비.
30MHz~3GHz까지는 Pre-Compliance장비. Chamber 조건이 없이도 100% 적합한
시험기 가능한 전도방출은 Full-Compliance로 만들어 시험소와 100% 일치되는 시험결과
얻음. 그 주파 수 이상은 Pre-Complaince 만들어 고객의 예산에 맞춘 사용자 맞춤 Receiver.
규격이 요구하는 모든 Detector 가능. < 옵션으로 Click 측정 가능 CISPR14-1>

***규격***
CISPR11(의료기,산업),CISPR15(조명)
CISPR22(가정용),CISPR25(자동차),CISPR14-1(가전제품)
그 외 국제 규격.


Pre-Compliance EMI TEST RECEIVER 7010
7010 Precompliance Test System
특별한 교육없이 사용하기 쉬운 S/W 제공. 전도성방출(CE)을  위한 Built-in CDN.
디버깅 & 제품 제작 단계에서 Pre-Test용으로 추언. 방사방출(RE)를 위해서는 안테나
연결을 통해 1GHz까지 시험 가능.



EMI TEST RECEIVER, PMM EMISSION Software, PMM9010/9030/9060
PMM 9010/9030/9060 Emission Suite PC Software.
A powerful Software Utility that add PMM 9010, PMM 9030 and PMM 9060 receivers of extremely useful functions to control measurements as well as to collect, analyze and post-process data safely and easily as never before.

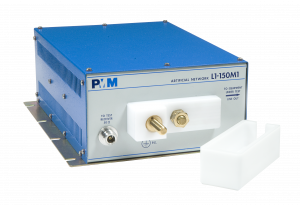

LISN L1-150M
L1-150M Multi-standard Single-path
·         Multi-standard design
·         0.1 to 200 MHz frequency range
·         150 A max output current
·         Large baseplate for optimal grounding
·         Robust, compact construction
·         Screw terminals for safe wiring
PMM L1-150M is a single-path LISN (Line Impedance Stabilization Network) designed to
be easily used for conducted disturbances measurements according to different
standards for Automotive and ISM (Industrial, Scientific, Medical) applications:
CISPR 16-1-2 CISPR 25 / ISO 11452-4 ISO 7637-2
Selecting the standard is as fast as the turn of a rotary switch located on the rear panel.
It can be used in conjunction with any EMI Receiver or Spectrum Analyzer.


LISN L2-16B
L2-16B Single-phase LISN (Line Impedance Stabilization Network)
MAIN FEATURES
·         9 kHz a 30 MHz frequency range
·         16 A max output current
·         Large baseplate for optimal grounding
·         Built-in, selectable, 150 kHz high pass filter
·         Artificial Hand circuit
·         Local and remote control for PMM EMI receivers
·         Meets the requirements of several standards including CISPR 16-1-2, VDE 0876, FCC part 15
PMM L2-16B single phase LISN (Line Impedance Stabilization Network) It can be used in conjunction with any EMI Receiver or Spectrum Analyzer.

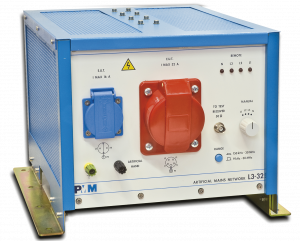

LISN L3-32
L3-32 3-phase LISN (Line Impedance Stabilization Network)
MAIN FEATURES
·         9 kHz a 30 MHz frequency range
·         32 A max output current
·         Large baseplate for optimal grounding
·         Built-in, selectable, 150 kHz high pass filter
·         Artificial Hand circuit
·         Local and remote control for PMM EMI receivers
·         Meets the requirements of several standards including CISPR 16-1-2, VDE 0876, FCC part 15
PMM L3-32 3-phase LISN (Line Impedance Stabilization Network) 32 A It can be used in conjunction with any EMI Receiver or Spectrum Analyzer.


LISN L3-64
L3-64 L3-64/690 3-phase LISN (Line Impedance Stabilization Network)
MAIN FEATURES
·         9 kHz a 30 MHz frequency range
·         63 A max output current
·         Large baseplate for optimal grounding
·         Local and remote control for PMM EMI receivers
·         Meets the requirements of several standards including CISPR 16-1-2, VDE 0876, FCC part 15
PMM L3-64 3-phase LISN (Line Impedance Stabilization Network) 63 A It can be used in conjunction with any EMI Receiver or Spectrum Analyzer.

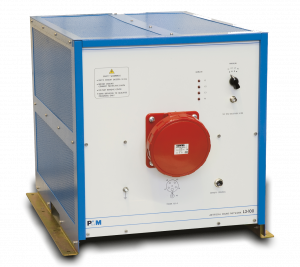

LISN L3-100
L3-100 3-phase LISN (Line Impedance Stabilization Network)
MAIN FEATURES
·         9 kHz a 30 MHz frequency range
·         100 A max output current
·         Large baseplate for optimal grounding
·         Local and remote control for PMM EMI receivers
·         Meets the requirements of several standards including CISPR 16-1-2, VDE 0876, FCC part 15
PMM L3-100 3-phase LISN (Line Impedance Stabilization Network) 100 A It can be used in conjunction with any EMI Receiver or Spectrum Analyzer.


SHC Voltage Probes
SHC Voltage Probes
A wide range of accessories such as: Antennas, High Voltage Probes, Absorbing Clamps, Near Field Probes, etc. and other complete the range of products. This will enable the operator to always have the correct set-up for any EMC standard. Several accessories enlarge the capability of the systems in any test condition to offer a useful tool either to achieve the CE mark or for design debugging and pre-qualification testing.

Antenna Set
Antennas
A wide range of antenna systems is available. Each antenna is individually calibrated. Until 50 MHz the monopole antenna (active and passive rod) are calibrated with the substitution method.
The loop antennas are calibrated inside an anechoic chamber by measuring the current in a primary loop and calculating the induction field. The loop to be calibrated is placed in this known field and the antenna factor is measured.


3 Axis Loop Antenna
Large Loop Antenna System (LLAS)
PMM RF-300 Large Loop Antenna System (LLAS) for EN 55015 (CISPR-15) Emission Testing of Luminaires.
Main features
• Fully compliant with EN 55015 (CISPR-15)
• 9 kHz to 30 MHz calibrated frequency range
• Complete 3 axis system with switching unit
• 2 meter diameter loops
• Simple to install, store and transport
• Can be used with any EMI receiver
• Ideal companion of PMM 9010 Digital EMI receiver (CISPR-16-1-1 full compliant)

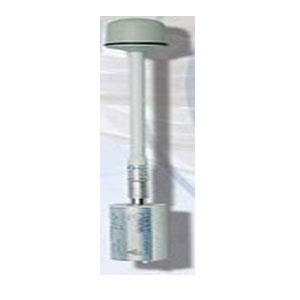

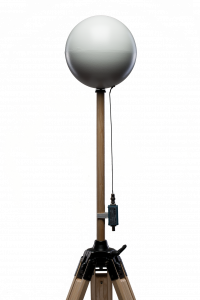

PMM VDH-01 Van der Hoofden test-head
PMM VDH-01 Van der Hoofden test-head (IEC 62493)
PMM VDH-01 is a Van der Hoofden test-head designed to meet the specification of the IEC 62493 standard for
the EMF assessment of lighting products in relation to human exposure, requiring the measurements of in-
duced currents in the frequency range 20 kHz - 10 MHz.
·         Physical dimensions and electrical characteristics according to IEC 62493
·         Protection network included
·         Individual calibration
·         Robust, rustproof construction
·         Lightweight Automatic calculation of factor F (in conjunction with PMM Emission Suite and PMM 9010 EMI receiver)
The test-head is composed by a conductive sphere of 210 mm diameter simulating the human head, by a connecting wire simulating the neck and by a passive network that matches the EMI receiver 50 Ohm input impedance and prevents it from overloading.
The PMM VDH-01 can be used with any CISPR-compliant EMI receiver; when used in conjunction with the EMI receiver PMM 9010, the measurement settings and the computing functions are automatically performed by
the PMM Emission Suite software.


Conducted lmmunity

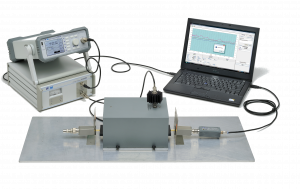

Cond-IS - RF Conducted Immunity System
NARDA Italy has renewed its already well known PMM 6000S/10 RF Immunity System with components and test management software to follow and even overcome latest requirements from the Standard IEC/EN 61000-4-6 and IEC/EN 61000-4-3.
Continuing with the philosophy of a "Modular Approach", which still provides several advantages for actual use and future upgrades of the system when compared to "compact" solutions, main innovations are represented by a completely redesigned software (PIMS), introduction of the new RF Generators PMM 3010 or 3030 and the True RMS Power Meter PMM 6630, all of them remotely driven through USB Ports by any PC.
PMM 6630 power meter can be operated up to 3 GHz, so representing an ideal companion for Radiated Immunity applications as well, in particular when matched to the same frequency range provided by the RF Generator model PMM 3030.


PIMS - PMM Immunity Suite Software
PIMS - PMM Immunity Suite Software
The new "PMM Immunity Suite" (PIMS) software, accurately designed in terms of functions and user friendly approach, can manage the whole range of PMM components during both Test and Calibration processes, introducing the possibility of looking at the various monitoring tracks from generator, power meters and field sensors. The software is user friendly and provides a really ergonomic configuration which comfortably drives the operator through the various steps, from definition and selection of HW components to settings of required parameters and finally starting the test with "just one button". Program window has been designed for omni-comprehensive overview of each specific test being performed, so that operator can easily control all details with a quick glance. A graphical scheme of the test set-up clearly reminds about proper physical connections between components, which could slightly differ between Tests and Devices' Calibrations.
In case of Radiated Immunity Tests according to IEC/EN 61000-4-3 in Anechoic Chambers or TEM/GTEM Cells, PIMS does also include calibration of radiated field up to 16 points in the grid of Field Uniformity assurance, providing "Amplifier Saturation Check" routine for proper amplifier/antenna matching verification at 80% AM Modulation increased power


3010 - EMC Wide Band RF Generator, 9 kHz - 1 GHz
3010 - EMC Wide Band RF Generator, 9 kHz - 1 GHz
PMM 3030 is a powerful wide band RF signal generator, ideal for all EMC immunity test applications that has been designed adopting an innovative philosophy and state-of-art components. The model equipped with plug-in, rechargeable battery pack allows for ground loops-free operation and true portability. PMM 3030 features a particularly user-friendly interface based on a clear, bright display and function keys conveniently arranged. All settings can be done by the front panel keyboard and rotary knob.
MAIN FEATURES
·         PMM 3030 9 kHz to 3 GHz frequency range
·         PMM 3010 9 kHz to 1 GHz frequency range
·         -107 to +10 dBm RF output
·         Internal AM and pulse modulation
·         Battery operation (mod. 3030-02)
·         RS232/USB communication
·         GPIB with external adapter


6600 - RF Power Sensor, 10 kHz - 1 GHz
6600 - RF Power Sensor, 10 kHz - 1 GHz
PMM 6600 is a simple and easy-to-use RF power meter useful for calibrating CDNs and CLAMPs of conducted immunity systems or for measuring the power forwarded to antennas or cells. Using a bidirectional coupler and two PMM 6600 allows to measure both reflected and forwarded power.


6630 - USB RF Power Sensor, 9 kHz - 3 GHz
6630 - USB RF Power Sensor, 9 kHz - 3 GHz
Accurate in laboratory, fast in manufacturing and solidly built for field applications
PMM 6630 is the ideal solution for RF power measurements in a wide variety of applications, including EMC immunity test systems to calibrate CDN and Clamps as well as to measure the input power of antennas or GTEM cells
Together with a directional coupler both direct and reflect power can be measured easily and precisely.
PMM 6630 is supplied with easy to use PC software to display the measurements in dBm, W, Vrms.
MAIN FEATURES
·         9 kHz to 3 GHz frequency range
·         100 nW to 1 W (-40 to +30 dBm) input range
·         Excellent power linearity (0.2 dBm typical)
·         True RMS response across 70 dB dynamic range enables accurate CW and modulated power measurements
·         Low current consumption to save laptop battery
·         No need for a Reference Calibrator
·         Lightweight, convenient and easy to use with desktop and laptop PC

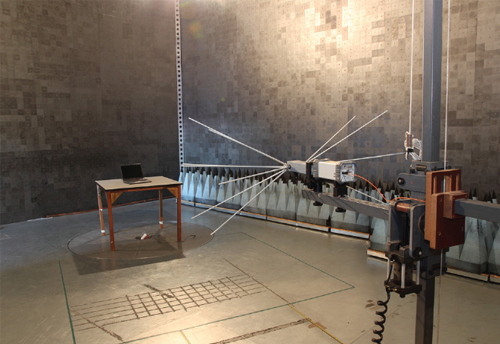

Radiated Immunity Test System as per IEC61000-4-3
Rad-IS - RF Radiated Immunity System
Unlikely the EMC Conducted Immunity System (refer to “PMM Cond-IS” documentation) for residential and industrial EUTs (Equipments Under Test) testing, “RF Radiated Immunity” compliance verification as for Standard IEC/EN 61000-4-3 requires a proper shielded and absorber lined testing enclosure where to inject required EM field-strength levels.
Depending on selected testing environment, which could be for example a Semi-Anechoic Chamber (SAC) or a GTEM Cell, some components to be used in the testing chain may significantly change, like Amplifiers or Antennas, while some others can remain the same at least up to 3 GHz, like Generator, Power Meter, Field Probe and Software for automatic management of both Calibration and Testing phases. A so called “Radiated Immunity System” can still be defined for almost 80% of required components and that’s exactly why NARDA STS Italy has created “PMM Rad-IS” to fulfil core requirements of such kind of testing, leaving an open choice only for Amplifiers and Antennas/GTEMs to be driven as “slave units” while selected case by case according to the various EM field-strength levels.


3010 - EMC Wide Band RF Generator, 9 kHz - 1 GHz
3010 - EMC Wide Band RF Generator, 9 kHz - 1 GHz
PMM 3030 is a powerful wide band signal generator, ideal for all EMC immunity test applications that has been designed adopting an innovative philosophy and state-of-art components. The model equipped with plug-in, rechargeable battery pack allows for ground loops-free operation and true portability. PMM 3030 features a particularly user-friendly interface based on a clear, bright display and function keys conveniently arranged. All settings can be done by the front panel keyboard and rotary knob.
MAIN FEATURES
·         PMM 3030 9 kHz to 3 GHz frequency range
·         PMM 3010 9 kHz to 1 GHz frequency range
·         -107 to +10 dBm RF output
·         Internal AM and pulse modulation
·         Battery operation (mod. 3030-02)
·         RS232/USB communication
·         GPIB with external adapter

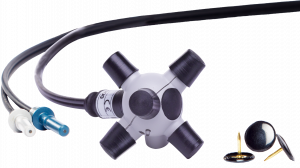

EP-600, EP-601, EP-602 Broadband active electric field probes
EP-600, EP-601, EP-602 Broadband active electric field probes
PMM EP-600: 100 kHz - 9,25 GHz; 0,14 - 140 V/m
PMM EP-601: 10 kHz - 9,25 GHz; 0,5 - 500 V/m
PMM EP-602: 5 kHz - 9,25 GHz; 1,5 - 1500 V/m
Electric field probes (diode detectors) combining excellent RF characteristics from 5 kHz up to 9,25 GHz, wide range, small size, light weight (25 g only), true spherical symmetrical configuration. Suitable for all EMC/EMI applications (chambers and TEM/GTEM cells), biology, materials research and wherever fast and accurate measurements with negligible or minimum interference of the probe to the field under measure are essential. The model EP-602 is designed for the most severe RF immunity tests e.g. in Aerospace and Automotive applications, where it can withstand overloads up to the exceptional value of 3000 V/m. The advanced internal Li-Mn rechargeable battery guarantees superior reliability with up to 80 hours of continuous operation. The battery is commonly available, accessible and easily replaceable without needing recalibration. This PMM’s exclusive technology overcomes the inconvenients other types of probes may suffer and allows for reducing the probe costs. PC direct connection via Optical to RS232/USB adapters, fiber optic cables available up to 40 m.
The probes are supplied with PC software for setting the various operating modes and parameters, and for reading and logging the measurements.  Accredited calibration available from our LAT Center Nr. 08.


OR-03 - Optical Repeater and Electric and Magnetic Field Probes up to 40 GHz
OR-03 - Optical Repeater and Electric and Magnetic Field Probes up to 40 GHz
The PMM OR-03 is a programmable optical repeater that allows the connection of every 8053A probe (electric and magnetic fields) to the user's Personal Computer via an optical fiber cable.
The OR-03 is an easy programmable device mainly designed for EMC applications together with the SW-03 or WIN-OR-03 software or with a software developed directly by the user.
Probe
Field
F. range
Level
Sensitivity
EP330
Electric
100 kHz - 3 GHz
300 V/m
0.3 V/m
EP301
Electric
100 kHz - 3 GHz
1000 V/m
1 V/m
EP183
Electric
1 MHz - 18 GHz
800 V/m
0.8 V/m
EP408
Electric
1 MHz - 40 GHz
800 V/m
0.8 V/m
HP032
Magnetic
100 kHz - 30 MHz
20 A/m
0.01 A/m
HP102
Magnetic
30 MHz - 1 GHz
20 A/m
0.01 A/m


PMM Immunity Suite Software
PMM Immunity Suite Software
PIMS - PMM Immunity Suite Software
The new "PMM Immunity Suite" (PIMS) software, accurately designed in terms of functions and user friendly approach, can manage the whole range of PMM components during both Test and Calibration processes, introducing the possibility of looking at the various monitoring tracks from generator, power meters and field sensors. The software is user friendly and provides a really ergonomic configuration which comfortably drives the operator through the various steps, from definition and selection of HW components to settings of required parameters and finally starting the test with "just one button". Program window has been designed for omni-comprehensive overview of each specific test being performed, so that operator can easily control all details with a quick glance. A graphical scheme of the test set-up clearly reminds about proper physical connections between components, which could slightly differ between Tests and Devices' Calibrations.
In case of Radiated Immunity Tests according to IEC/EN 61000-4-3 in Anechoic Chambers or TEM/GTEM Cells, PIMS does also include calibration of radiated field up to 16 points in the grid of Field Uniformity assurance, providing "Amplifier Saturation Check" routine for proper amplifier/antenna matching verification at 80% AM Modulation increased power
.
