Field Probe

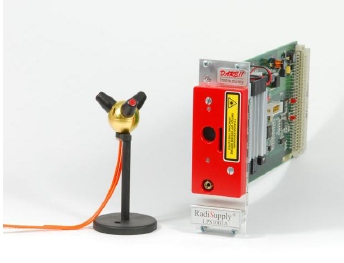

 RadiSense? 10

Frequency range: 9 kHz – 10 GHz

Measuring range (V/m): 0.1 – 750 V/m

Measuring speed: 1,000 measurements per second



 RadiSense? 26

10 MHz – 26 GHz E-field probe

Frequency range: 10 MHz – 26 GHz

Measuring range (V/m): 0.5 – 1000 V/m

Measuring speed: 100/1000 samples/sec



 RadiSense? 40

10 MHz – 40 GHz E-field probe

Frequency range: 10 MHz – 40 GHz

Measuring range (V/m): 0.5 – 1000 V/m

Measuring speed: 100/1000 samples/sec

On-Site (Mobile) EMC Testing

시험품의 크기, 무게 전원 등의 문제로 EMC TEST HOUSE에서 시험이 불가능 한 경우, 최소한의 EMC 시험장비로 고객Site에서 시험을 진행



주요 시험은 다음과 같이 구성

►  EMI (CE, RE)

►  ESD (무선방식으로 자유롭게 이동이 가능)

►  EFT, SURGE, Dip/Interruption

►  CS, BCI, RS



저희가 제공하는 On-Site EMC Testing Solution

규격에 부합하면서 아래의 사항들을 지원



►  Easy to Use (30분 교육으로 시험 진행 가능)

►  Easy to Move (가벼운 무게, 편리한 이동)

►  경제적인 Turnkey Solution (Low Price)

►  CS/BCI/RS 다양한 Driver 제공

►  CS/BCI에서 RS로 쉽게 확장 가능

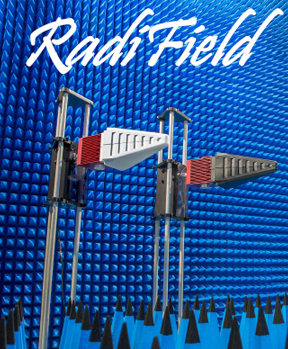

RadiField (800Mhz~3/6/18Ghz)

IEC61000-4-3 Fully Compliance

800MHz~18GHz / Max 75 V/m cover

(For Industry, Military, Aerospace)

시스템 컴퍼넌트 일체형 구조로 불필요한

Power LOSS를 줄임

(Amplifier, Coupler, Power Sensor, Antenna 내장)

High Gain 3개의 안테나에서 발생되는 Field Combining 하는 기술을 사용하여 효율성 및 지향성을 높임

Simple compact 구조로 설치 및 이동이 용이

경량으로 On-site 시험에 강력 추천

타사 브랜드 비해 동일 성능 저비용 보장

기 보유한 RadiCentre 시스템과 완벽 호환 가능

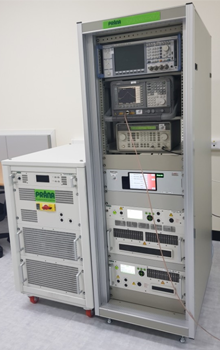

RS/RI System

고객이 원하시는 RS/RI System Design 가능

Raditeq사 장비를 사용해 가성비 높은 시스템 설계

고객이 보유 중 & 제공 가능한 장비로 설계 가능

각종 Monitoring 장비와 연동하여 시험 가능



Raditeq CS System (CS/BCI)

편리한 USER 인터페이스 (Color touch screen) 및 조작이 간편한 소프트웨어 RadiMation (RadiMation: 자동 앰프 포화도 측정 기능 탑재)

IEC 61000-4-6 Ed 4 Compliance, 최신규격

ISO/현대 BCI Test 지원

Module Type, 국내에서 업그레이드 가능

시스템에서 IEC 61000-4-3(RS) 추가 확장 가능

Up to 230 MHz(or 400MHz), Power up to 200Watt

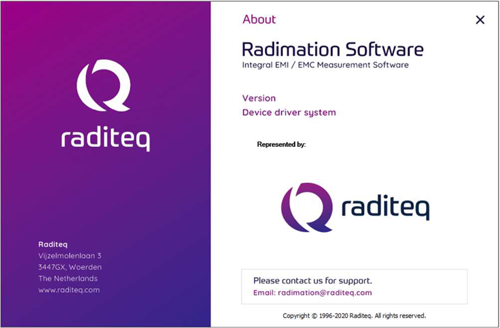

RadiMation (EMC software)

RI(RS), CS(BCI), CE, RE EMC Software

Easy to Use, 30분 안에 교육완료 및 사용 절차 Youtube 영상 제공

풍부한 장비 드라이버 제공 (R&S, KeySight etc.)

Saturation & Harmonics & Linearity automation

Auto/Manual Test Reporting 기능

관심 주파수만 선택 시험 (Interactive Mode)

Sequence Test 가능

모니터링 장비 연동 가능(UPV, CANOE, CAN etc.)

고객이 필요로 하는 장비의 Driver 개발 가능

BCI Close Loop & Substitution method test.

주기적인 Driver Software Update

Spot Test available for RI/CS/BCI



CS ITCK System
IEC61000-4-6 CS system

• Compact: Compact system bundle with easy setup.
• Modular: Future extendable, upgradeable & easy service.
• Flexible: Can be adopted to customer specific CI test needs, for example additional power meters for reverse power and sensing power.
• State-of-the-art: Shared and proven technology from DARE

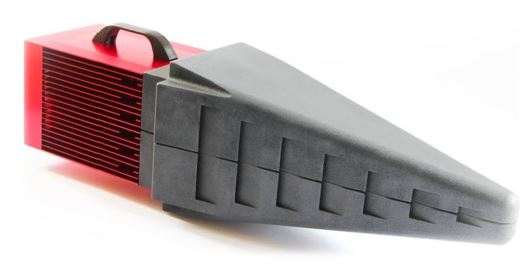

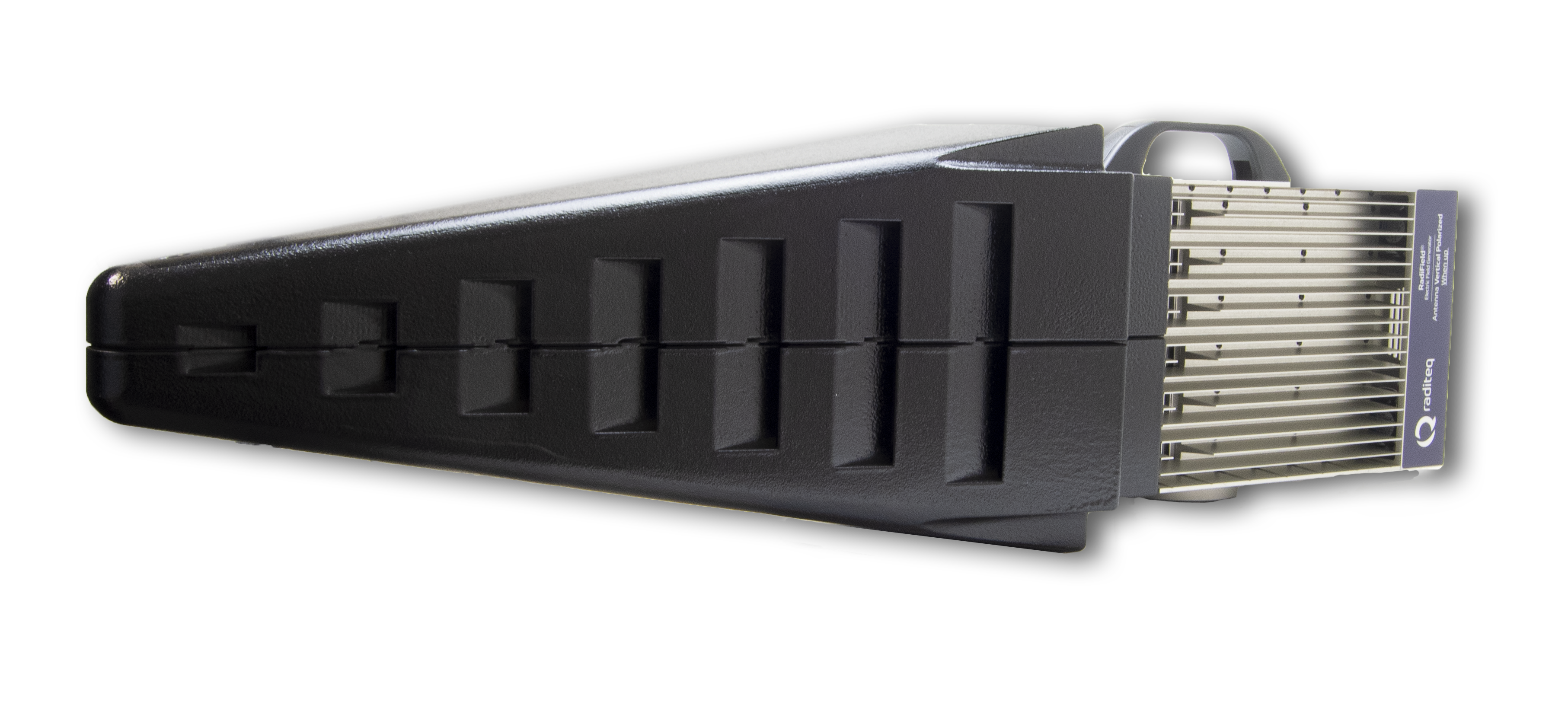

RadiField (E-Field Generater)

RadiField는 RF Power Amp + Antenna  + Power Meter를 내장하여

전통적인 시스템에서 발생하고 Cable loss / Connector loss등을 없앨

수 있으며, 기존의 어떤 안테나 보다 BeamWidth을 넓게 만들 수 있어

IEC61000-4-3에 따른 시험범의 쉽게 수행 할 수 있음.

> 최대 3m 거리에서 1GHz~6GHz uniformity 10V/m(18V/m),

> 1GHz~6GHz 1m 거리에서 54V/m)



DARE Instrument 소개

EMC equipment and EMC software

DARE!! Instruments develops and produces high quality EMC equipment like EMC measurement

instruments and full automated EMC test software. DARE!! Instruments has developed a number

of unique products in the field of EMC measurements and calibrations.



RadiMation?

* The integrated software for automated EMC measurements.

* The software enables fast and accurate EMC measurements

  and supports all commercially available EMC equipment.

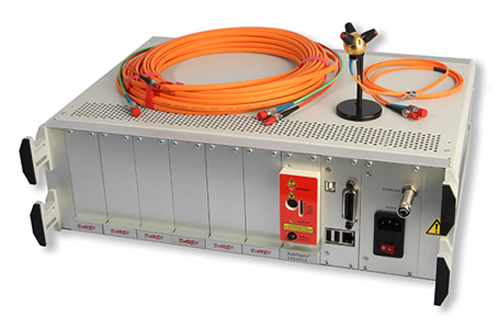

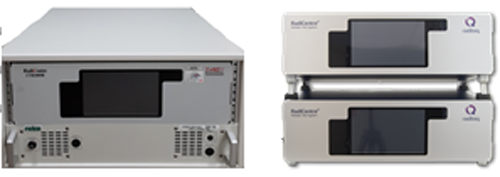

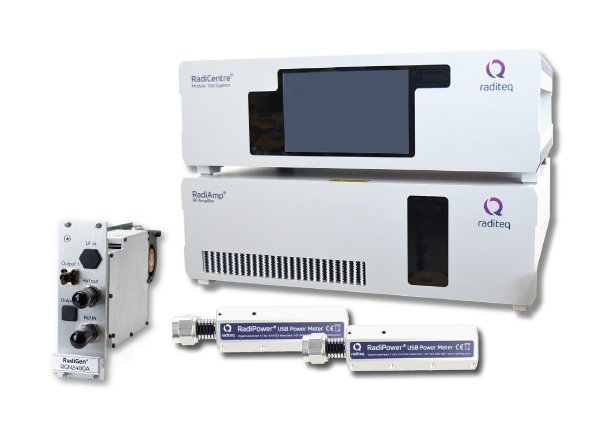

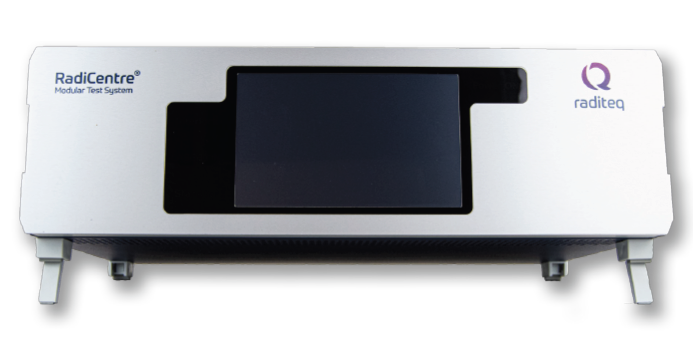

RadiCentre?

*The one-, two- or seven-slot 19-inch rack mountable system.

* For RadiSense?, RadiPower?, RadiGen?, RadiControl?, RadiMate?, RadiLink? and RadiSwitch? modules.



RadiSense?:
* The unique family of battery-free (laser supplied) isotropic e field sensors allows measurements
with field strengths of 0,25 V/m till 4000 V/m in the frequency range of 10 kHz to 18 GHz.

* Its small dimensions make it the ideal probes for measurements in small cells and non-stop measurements.

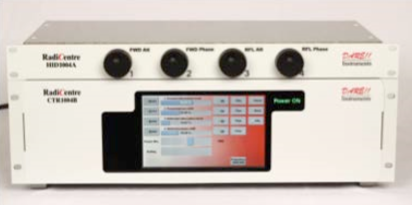

RadiBalance
Nulling Card to effectively detect impedance changes Compact and Integrated Solution · Robust · Flexible

DARE!! Instruments has extended the range of test capabilities of the RadiCentre modular test system towards the
 RF test market. With the RadiBalance plug-in card NUL1001A changes of the input impedance (S11) of the Device Under Test (DUT) can be detected.

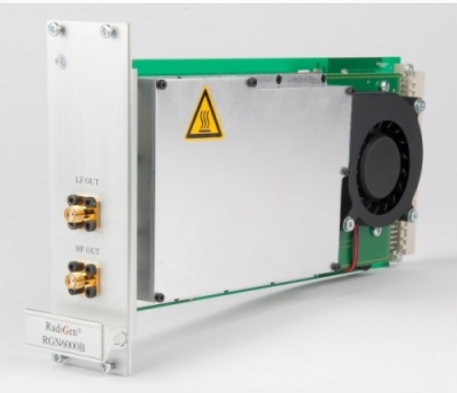

RadiGen?

* Family of EMC / RF Signal Generators.

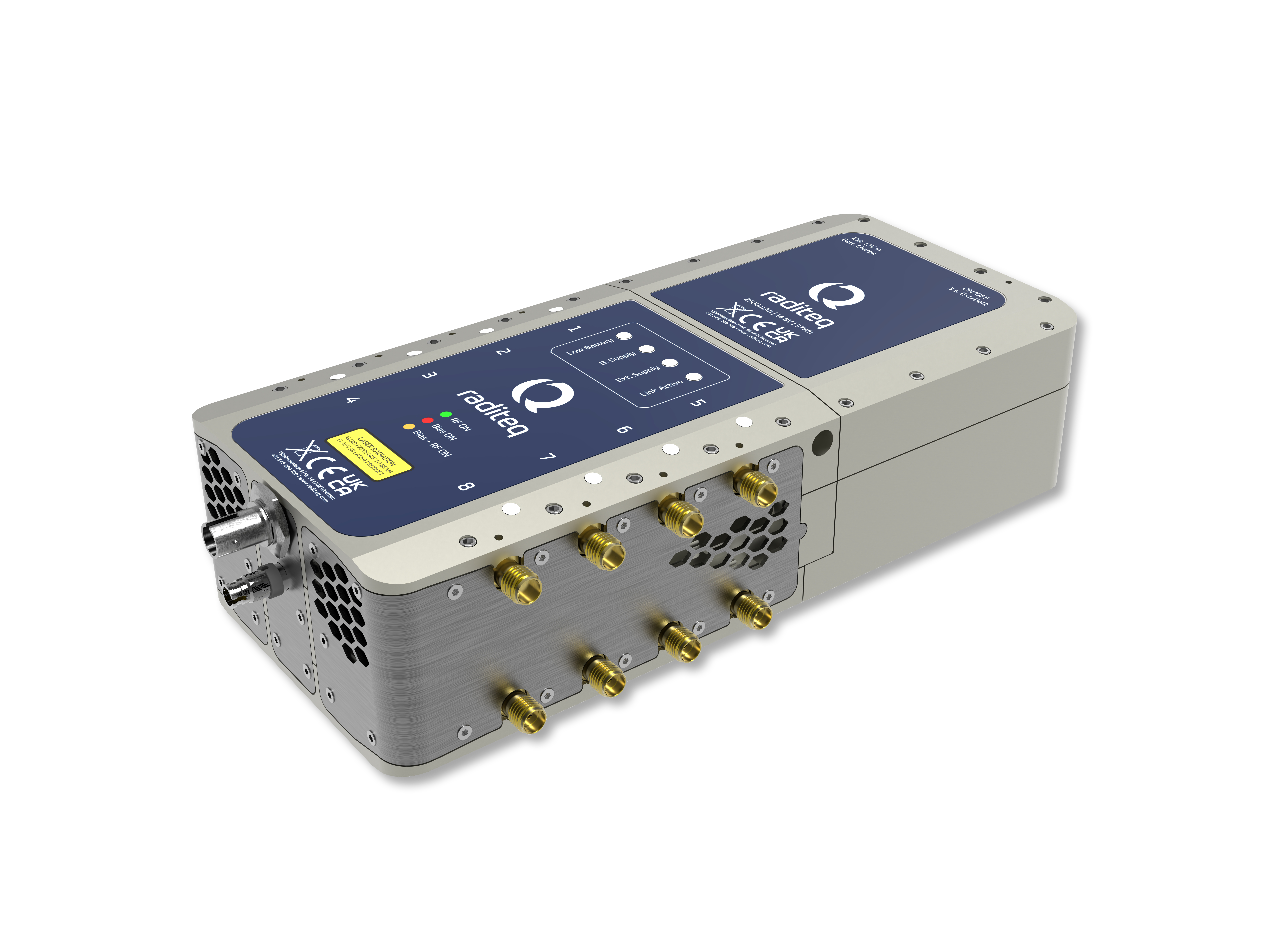

RadiLink?

* The optical alternative for the coaxial cable with wide dynamic range up to 3 GHz.

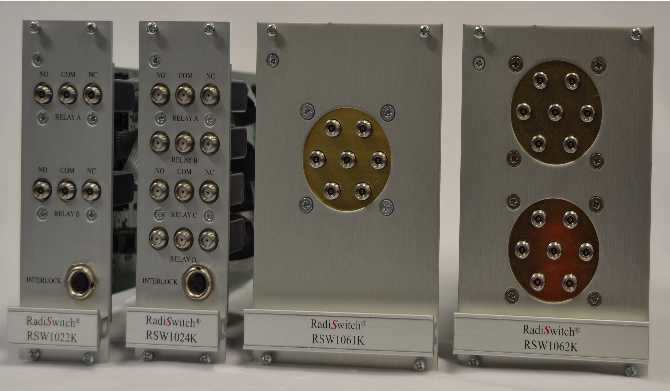

RadiSwitch?


* The solution for low loss switching of high frequency (RF) signals.

*Several switch cards available with SPDT^and SP6T relays in BNC, N-type, SMA type (18GHz) and K-type (40GHz) with power levels up to 700W.

* All cards are intended for use in the RadiCentre?.

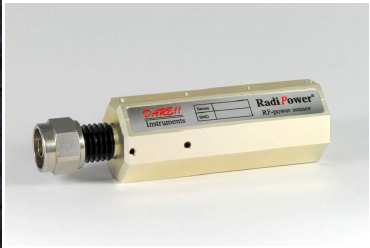

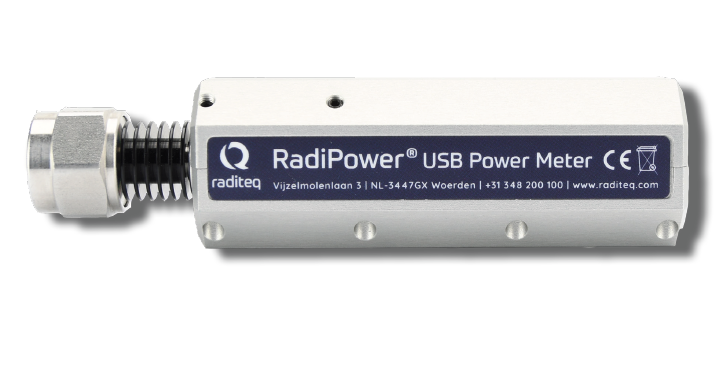

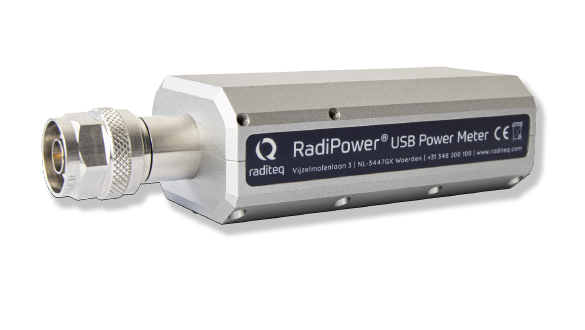

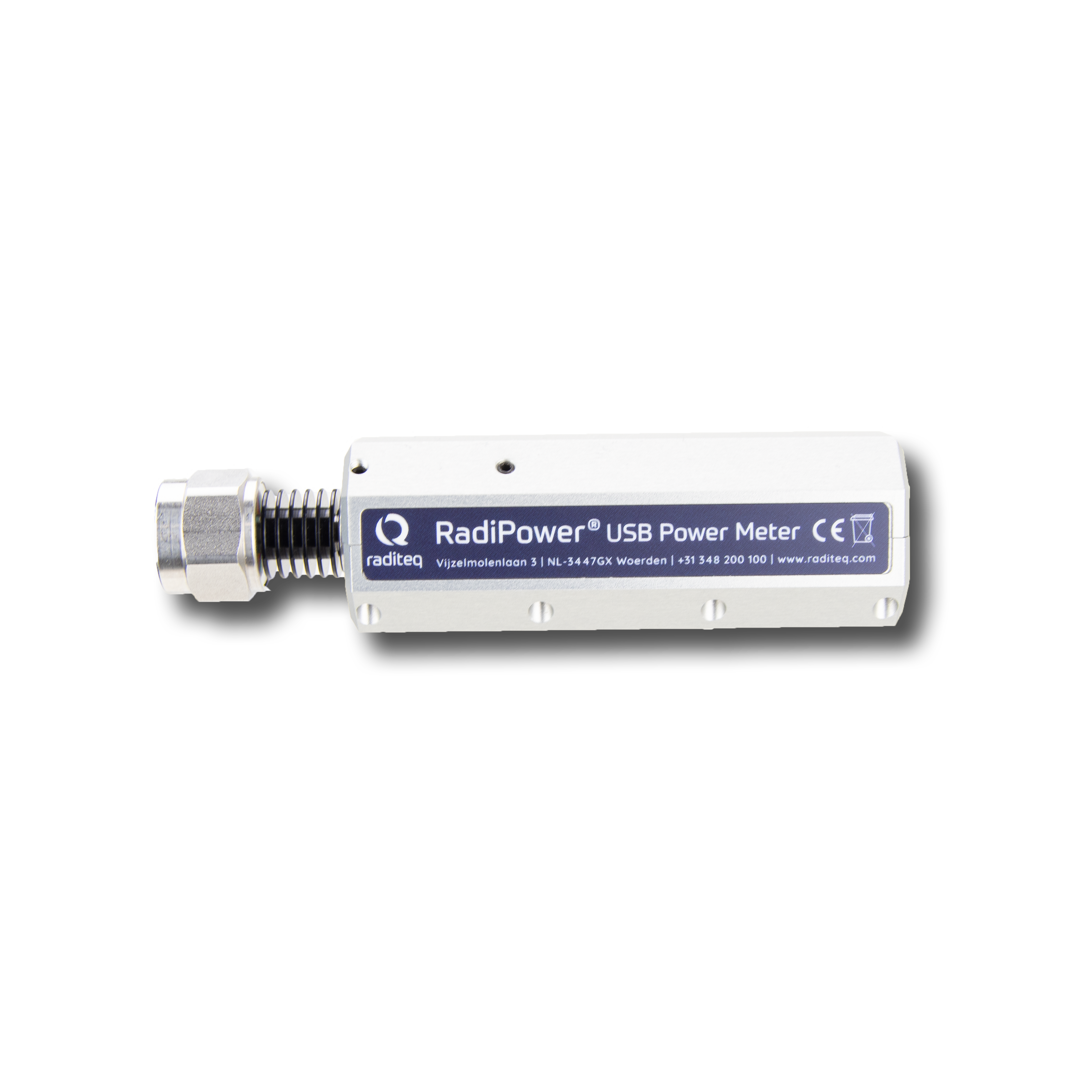

RadiPower?

* The successful range of EMC / RF power meters for EMC and Telecom applications.

*From 9 kHz to 18 GHz, CW, Burst/Pulse and Wireless versions.

 Due to the high speed, even at low power, it is the ideal power meter for fast and accurate EMC measurements.



RadiMate?

* The four channel 16 bit A / D and DA-converter, for use in anechoic rooms and cells,

to monitor EUT signals during EMC measurements.

* Immune to 300 V / m.

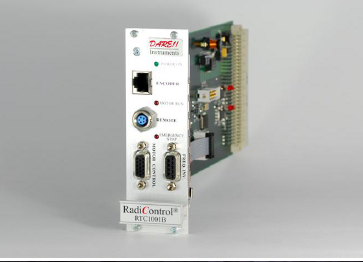

RadiControl?

The universal controler card for EMC turntables and antenna masts

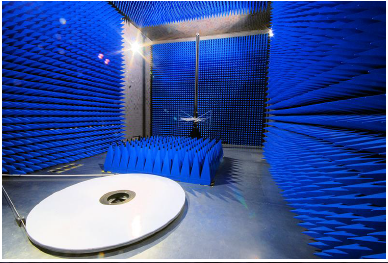

RadiTurn?

The low profile, transparent turntable solution for EMC measurements and calibrations in anechoic rooms and Open Area Test Sites (OATS).



HI-4413P Fiber to Serial Converter

Key Features

  • Can also be used with HI-3702, HI-3638
  • Provides Isolation from Field Strength Measurement Point
  • Used with most Holaday optically coupled probes.
  • No External Power Supply Required



2020 Multi-Axis Positioner (MAPS)

Key Features

  • Angular positioner accuracy within +/- 0.25°
  • Variable speed rotation
  • Multi-Axis positioner
  • Fiber optic control lines eliminate RF noise
  • 360° independent rotation in both azimuth and ortho axes

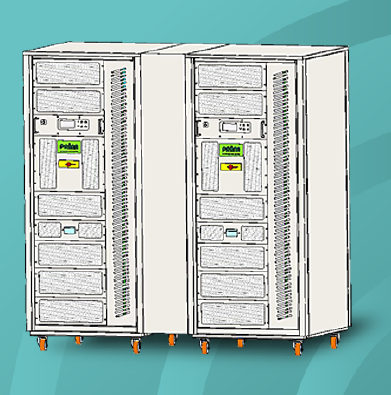

GN7000

* 100 kHz - 200 MHz / 7000 Watts

* Class A solid state

* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB >5000 W and H<-20dBc up to 100MHZ

  P1dB >2000 W and H<-20dBc  from 100MHZ to 200MHZ

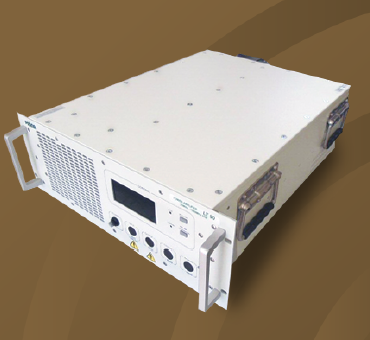

LT90

* 20 kHz - 1000 MHz / 90 Watts

* Class A solid state

* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

   P1dB >60 W and H<-20dBc

   P1dB >75 W and H<-20dBc   P1dB >45 W and H<-20dBc

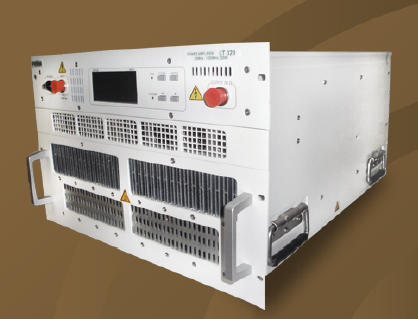

LT320

* 20 kHz - 1000 MHz / 320 Watts

* Class A solid state

* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB >280 W and H<-20dBc from 20MHZ to 500 MHZ

    P1dB >200 W and H<-20dBc from 500MHZ to 1000

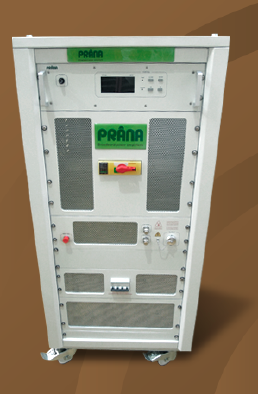

LT600

* 20 kHz - 1000 MHz / 600 Watts

* Class A solid state

* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

 P1dB >350 W and H<-20dBc from 30MHZ to 80 MHZ

 P1dB >600 W and H<-20dBc from 80MHZ to 600

   P1dB >350 W and H<-20dBc from 600MHZ to 1000

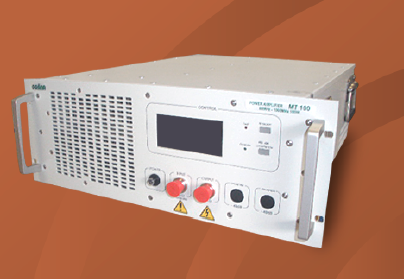

MT100
* 80 MHz - 1000 MHz

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 80 W and H < -20 dBc up to 500 MHz and

  P1dB > 60 W and H < -20 dBc from 500 MHz to 1000 MHz

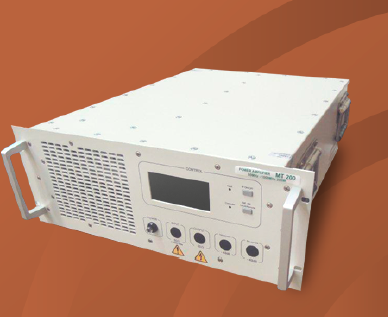

MT200
*80 MHz - 1000 MHz / 200 W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 140 W and H < -20 dBc up to 600 MHz

  P1dB > 110 W and H < -20 dBc from 600 MHz to 1000 MHz

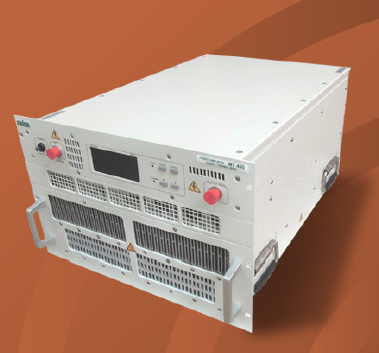

MT400
*80 MHz - 1000 MHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 350 W and H < -20 dBc up to 500 MHz

  P1dB > 220 W and H < -20 dBc from 500 MHz to 1000 MHz

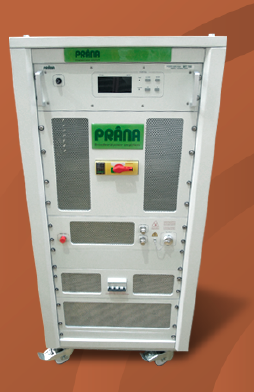

MT700
*80 MHz - 1000 MHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 600 W and H < -20 dBc up to 500 MHz

  P1dB > 400 W and H < -20 dBc from 500 MHz to 1000 MHz

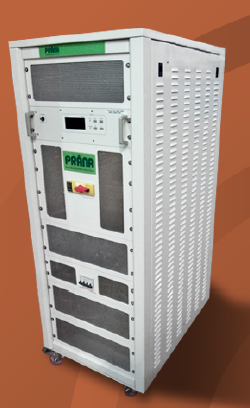

MT1200
*80 MHz - 1000 MHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 1000 W and H < -20 dBc up to 500 MHz

  P1dB > 700 W and H < -20 dBc from 500 MHz to 1000 MHz

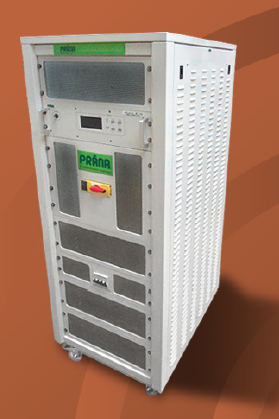

MT1400
*80 MHz - 1000 MHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 1200 W and H < -20 dBc up to 400 MHz and

  P1dB > 700 W and H < -20 dBc from 400 MHz to 1000 MHz

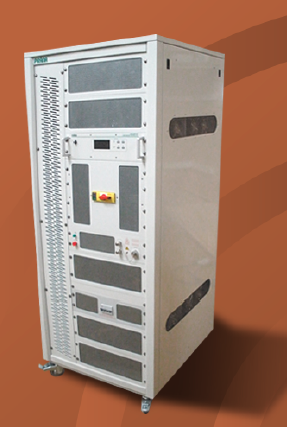

MT1700
*80 MHz - 1000 MHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 1500 W and H < -20 dBc up to 600 MHz

  P1dB > 1200 W and H < -20 dBc from 600 MHz to 1000 MHz

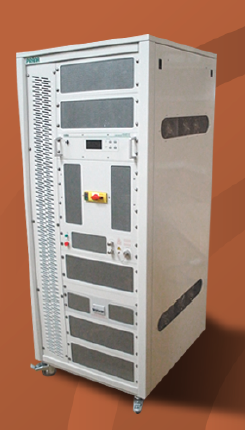

MT2000
*80 MHz - 1000 MHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 2000 W and H < -20 dBc up to 500 MHz

  P1dB > 1200 W and H < -20 dBc from 500 MHz to 1000

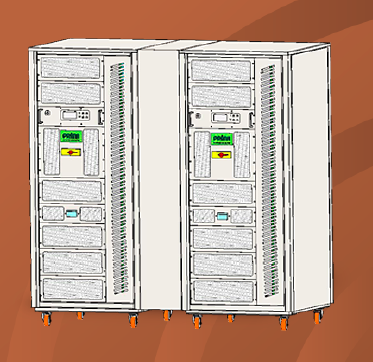

MT2800
*80 MHz - 1000 MHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 2700 W and H < -20 dBc up to 500 MHz

  P1dB > 1600 W and H < -20 dBc from 500 MHz to 1000 MHz

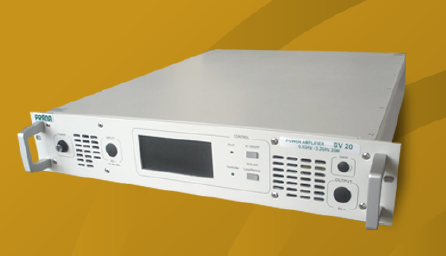

SV20
*800 MHz - 3200 MHz

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 14 W and H < -20 dBc

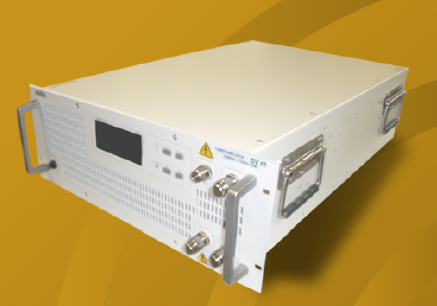

SV40
*800 MHz - 3200 MHz/40 W CW

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 30 W and H < -20 dBc up to 2 GHz

  P1dB > 25 W and H < -20 dBc from 2 GHz to 3.2 GHz

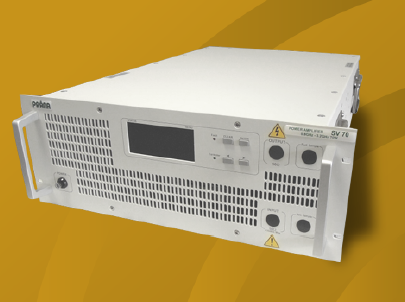

SV70
*800 MHz - 3200 MHz /70W CW

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 70 W and H < -20 dBc up to 2 GHz

  P1dB > 40 W and H < -20 dBc from 2 GHz to 3.2 GHz

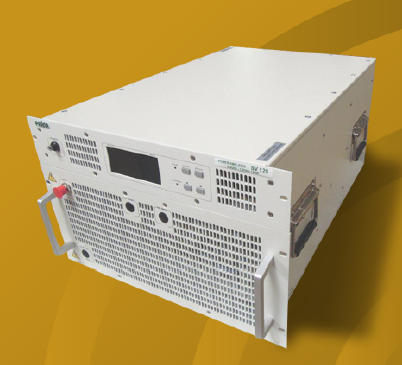

SV120
*800 MHz - 3200 MHz

*Class A solid state

*Typical output power : 120 W CW
*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 90 W and H < -20 dBc up to 2 GHz

  P1dB > 70 W and H < -20 dBc from 2 GHz to 3.2 GHz

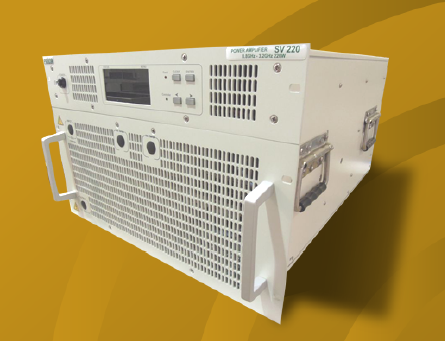

SV220
* 800 MHz - 3200 MHz

*Class A solid state

*Typical output power : 220 W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 180 W and H < -20 dBc up to 2 GHz

  P1dB > 160 W and H < -20 dBc from 2 GHz to 3.2 GHz

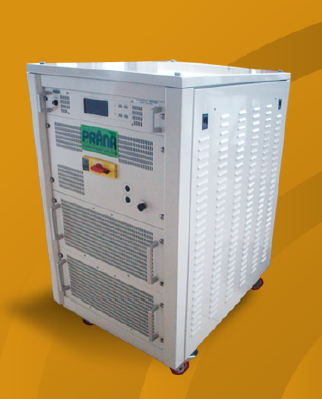

SV450
*800 MHz - 3200 MHz

*Class A solid state

*Typical output power : 450 W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 300 W and H < -20 dBc up to 2 GHz

  P1dB > 250 W and H < -20 dBc from 2 GHz to 3.2 GHz

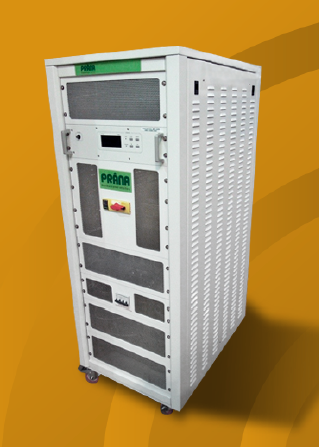

SV1000
* 800 MHz - 3200 MHz

* Class A solid state

* Typical output power : 1000 W CW

* Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB >570 W and H<-20dBc up to 2 GHZ

  P1dB >470 W and H<-20dBc from 2 GHZ

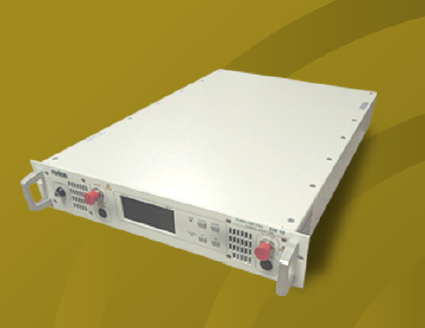

SW18
*800 MHz - 4000 MHz /18 W CW

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 13 W and H < -20 dBc up to 2.5 GHz

  P1dB > 12 W and H < -20 dBc from 2.5GHz to 4 GHz

SW35
*800 MHz - 4000 MHz / 35W CW

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 25W and H < -20 dBc up to 3GHz

  P1dB > 20 W and H < -20 dBc from 3GHz to 4 GHZ

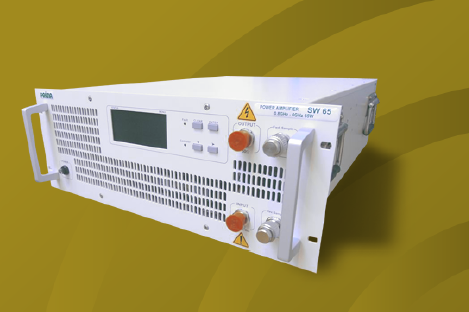

SW65
*800 MHz - 4000 MHz /65 W CW

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 40W and H < -20 dBc up to 3GHz

  P1dB > 30 W and H < -20 dBc from 3GHz to 4 GHZ

SW100
*800 MHz - 4000 MHz / 100 W CW

*Class A solid state

*Broadband (instantaneous single band): 0.8 GHz – 4 GHz

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

p1dB > 70W and H < -20 dBc up to 3GHz

  P1dB > 60 W and H < -20 dBc from 3GHz to 4 GHZ

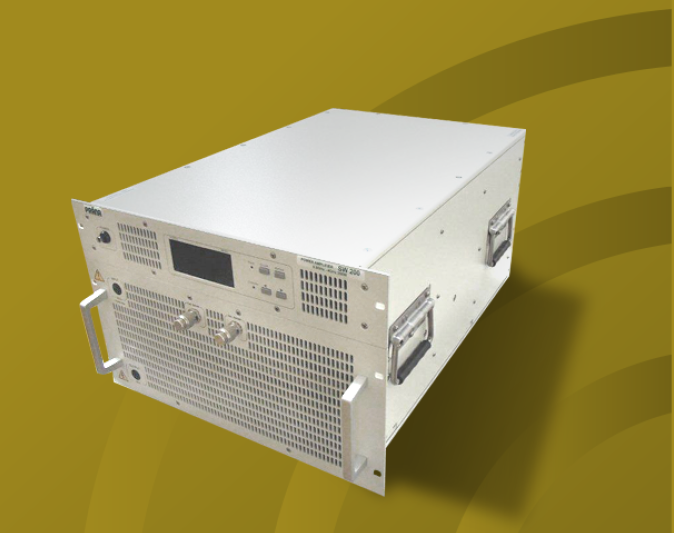

SW200
*800 MHz - 4000 MHz / 200W CW

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 140W and H < -20 dBc up to 3GHz

  P1dB > 120 W and H < -20 dBc from 3GHz to 4 GHZ

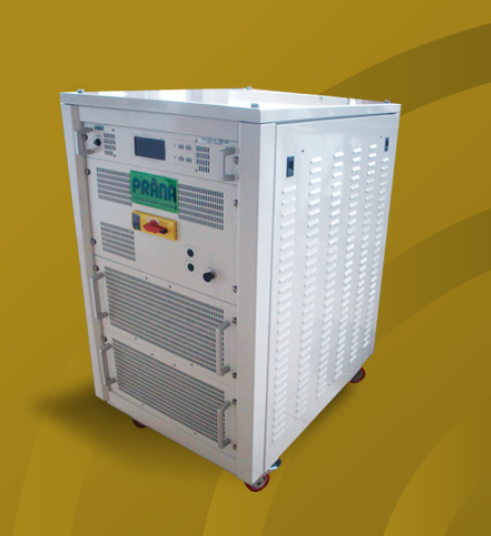

SW420
*800 MHz - 4000 MHz /420 WCW

*Class A solid state

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 300W and H < -20 dBc up to 3GHz

  P1dB > 220 W and H < -20 dBc from 3GHz to 4 GHZ

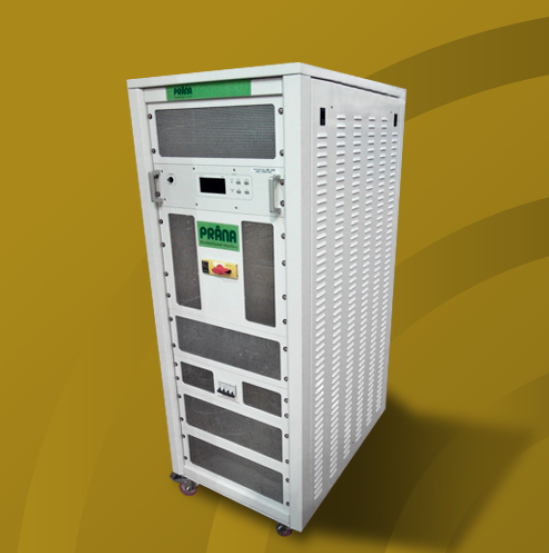

SW800
*800 MHz - 4000 MHz / 800 W CW

*Class A solid state

*Typical output power : 800 W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 520W and H < -20 dBc up to 3GHz

  P1dB > 420 W and H < -20 dBc from 3GHz to 4 GHZ

UX15
*2000 MHz - 6000 MHz

*Class A solid state

*Typical output power : 15 W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 12W and H < -20 dBc up to 4GHz

  P1dB > 11W and H < -20 dBc from 4GHz to 6GHZ

UX30
*2000 MHz - 6000 MHz

*Class A solid state

*Typical output power : 30 W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 20W and H < -20 dBc up to 4GHz

  P1dB > 17W and H < -20 dBc from 4GHz to 6GHZ


UX55
*2000 MHz - 6000 MHz

*Class A solid state

*Typical output power : 55 W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 40W and H < -20 dBc up to 4GHz

  P1dB > 35W and H < -20 dBc from 4GHz to 6GHZ

UX100
*2000 MHz - 6000 MHz

*Class A solid state

*Typical output power : 100W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 70W and H < -20 dBc up to 4GHz

  P1dB > 55W and H < -20 dBc from 4GHz to 6GHZ


UX150
*2000 MHz - 6000 MHz

*Class A solid state

*Typical output power : 150W CW

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 100W and H < -20 dBc up to 4GHz

  P1dB > 80W and H < -20 dBc from 4GHz to 6GHZ

SX40/15
*800 MHz - 6000 MHz

*Class A solid state

*Typical output power : 40 W CW (0.8 – 3.2 GHz) and15 W CW (3.2 – 6 GHz)

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 25 W and H < -20 dBc up to 3.2 GHz

  P1dB > 10 W and H < -20 dBc from 3.2 GHz to 6 GHz

SX40/30
*800 MHz - 6000 MHz

*Class A solid state

*Typical output power : 40 W CW (0.8 – 3.2 GHz) and 30 W CW (3.2 – 6 GHz)

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 25 W and H < -20 dBc up to 3.2 GHz

  P1dB > 16 W and H < -20 dBc from 3.2 GHz to 6 GHz

SX70/15
*800 MHz - 6000 MHz

*Class A solid state

*Typical output power : 70 W CW (0.8 – 3.2 GHz) and  15 W CW (3.2 – 6 GHz)

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 40 W and H < -20 dBc up to 3.2 GHz

  P1dB > 10 W and H < -20 dBc from 3.2 GHz to 6 GHz

SX70/55
*800 MHz - 6000 MHz

*Class A solid state

*Typical output power : 70 W CW (0.8 – 3.2 GHz) and  55 W CW (3.2 – 6 GHz)

*Linear output power (1 dB compression) guaranted with harmonics <-20 dBc:

P1dB > 38 W and H < -20 dBc up to 3.2 GHz

  P1dB > 32 W and H < -20 dBc from 3.2 GHz to 6 GHz

Pince IP-DR250
*Broadband (instanteous single band) : 10KHZ-400MHZ

*Typical power: 500 W cW


Jig CJ-DR250
* Calibration jig for ip-dr250









Data Sheet 352
Frequency Range: 10 kHz - 5 GHz
Gain: 26 dB
Output Power: 10 mW
Feature:
Broadband


Data Sheet 354
Frequency Range: 10 kHz - 3 GHz
Gain: 19 dB
Output Power: 30 mW
Feature:
Excellent pulse response


Data Sheet 317
Frequency Range: 10 kHz - 2.5 GHz
Gain: 38 dB
Output Power: 30 mW
Feature:
High gain


Data Sheet 330
Frequency Range: 10 kHz - 2.5 GHz
Gain: 20 dB
Output Power: 12 mW
Feature:
General purpose


Data Sheet 310
Frequency Range: 9 kHz - 1 GHz
Gain: 32 dB
Output Power: 10 mW
Feature:
Low noise figure


Data Sheet 315
Frequency Range: 10 kHz - 1 GHz
Gain: 51 dB
Output Power: 30 mW
Feature:
Low noise, very high gain
