VULP 9118 C

Log.-Per. Antenna, aluminium tubing, 1 kW power, 100-1400 (2000) MHz
[Dimensions] [Radiation Pattern] [VSWR]

VULP 9118 D

Log.-Per. Antenna, aluminium tubing, 1 kW power, (80) 95 –1500 (1800) MHz
[Dimensions] [Correction] [VSWR] [Fieldstrength]

VULP 9118 E

Log.-Per. Antenna, aluminium tubing, 1 kW power, 75 (50)-1500 MHz.
[Dimensions] [Radiation Pattern] [VSWR] [Fieldstrength]

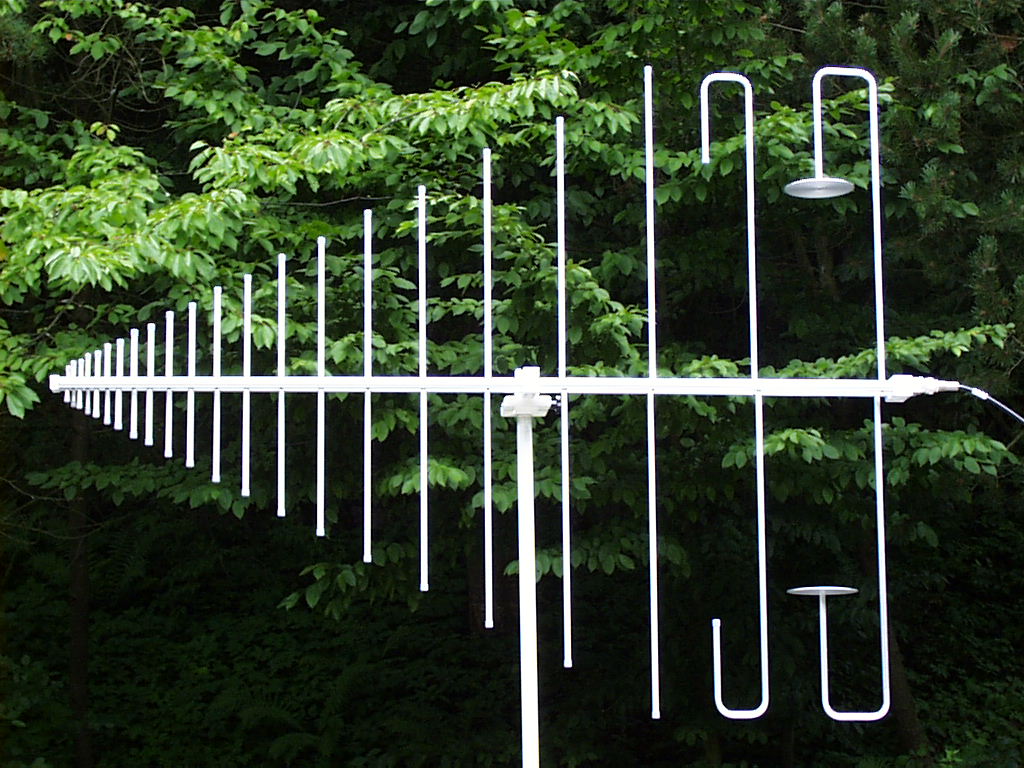

VULP 9118 E special

Nearly identical gain as VULP 9118 E but with reduced width. Special = folded longest elements.
[Correction] [Fieldstrength] [Picture]

VULP 9118 E High Power

Log.-Per. Antenna, aluminium tubing, high power, 7/16-connector, 75 (50)-1500 MHz.
[Dimensions] [Correction] [Fieldstrength]

VULP 9118 F

Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 55 -1800 MHz
[Dimensions]

VULP 9118 G

Log.-Per. Antenna, al. tubing, end discs, 1 kW power, 45 -1500 MHz
[Dimensions] [Correction] [Fieldstrength]

VULP 9118 D/E/F/G Special

Nearly identical gain as VULP 9118 D/E/F/G but with reduced width. Extra charge added to the basic model. Special = folded longest elements.

VULP 9118 D special

VULP 9118 H

Log.-Per. Antenna, aluminium tubing, 1 kW power, (26) 30 - 1500 (1800) MHz, N-connector gain 6 dBi, VSWR<3, width 5.2 m, length 4.8 m, weight 35 kg.
[Radiation Pattern] [Manual]

VULP 9118 H Option WP

Option: grey coating and sealing for outdoor use

USLP 9142

UHF – SHF Log. – Per. Antenna, 0.7 – 5 (8) GHz
[Dimensions] [Radiation Pattern] [VSWR] [Fieldstrength]

USLP 9143

UHF – SHF Log. – Per. Antenna, (0.25) 0.3 – 5 (7)GHz
[Dimensions] [Radiation Pattern] [Correction] [VSWR] [Fieldstrength]

USLP 9143 B

UHF – SHF Log. – Per. Antenna, (0.18) 0.2 – 7 (8)GHz
[Correction]

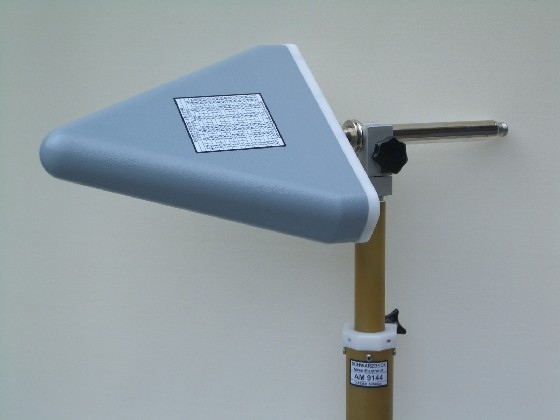

ESLP 9145

UHF – EHF Log. – Per. Antenna, (0.7) 1- 18 (20) GHz, N-connector. A new low attenuation cover allows measurements with radome. For older models with S/N<184 check manual!
[Radiation Pattern] [VSWR] [Fieldstrength] [Picture]

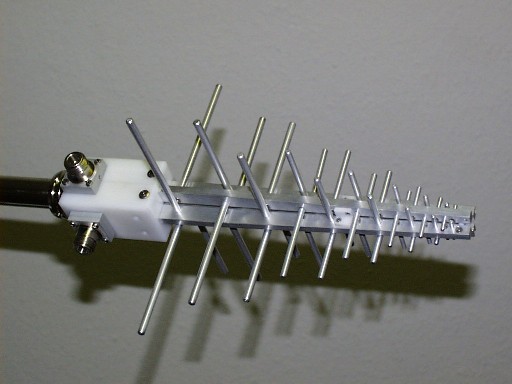

XSLP 9142

Dual Polarized UHF-SHF Log.-Per. Antenna, 800 MHz – 3(5) GHz, 50 W
[Radiation Pattern] [Picture]

XSLP 9143

Dual Polarized UHF-SHF Log.-Per. Antenna, 300 MHz – 3(5.5) GHz, 50 W
[Radiation Pattern]

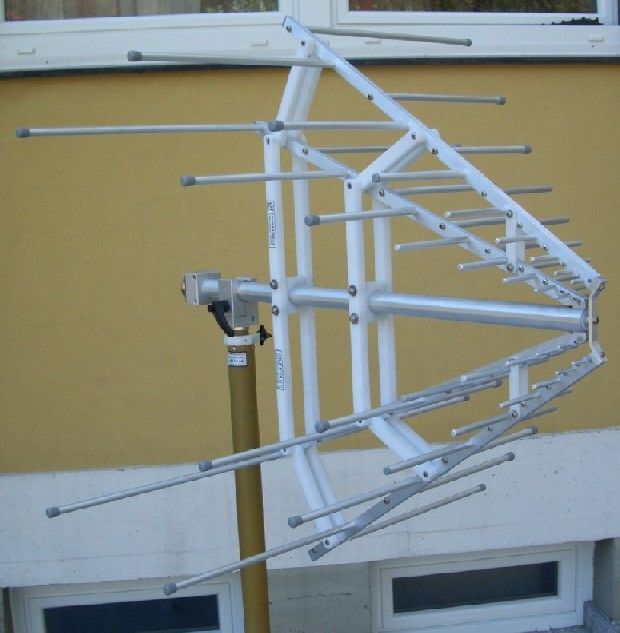

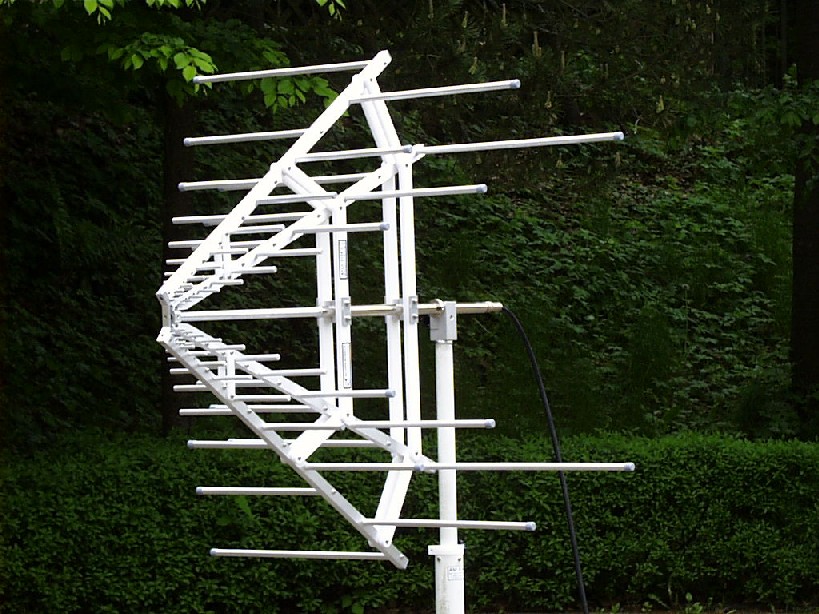

STLP 9128 C

Stacked double Log.-Per. Antenna, typ. gain: 9 dBi, alum. Tubing, high power, (150) 200 - 1500 (4000) MHz, N-connector 1 kW
[Radiation Pattern] [Correction] [VSWR] [Picture]

STLP 9128 C Opt 7/16

Option: with 7/16-connector 3 Kw

STLP 9128 C Opt. 13-30

Option: with [13-30-connector] limited to 2500 MHz but higher power up to 8 kW including adapter similar to AA 9202
[Picture]

STLP 9128 D

Stacked double Log.-Per. Antenna, typ. gain: 9 dBi, alum. Tubing, high power, 80 -3000 (4000) MHz, N-connector, [fastlinks] for quick removal of the rear parts of the antenna. [Video: Fastlinks] Recommended Adapter: AA 9209.

STLP 9128 D Opt. 7/16

Option: with 7/16-connector 3 kW

STLP 9128 D special

Like STLP 9128 D but with folded longest elements and smaller structure angle, [fastlinks]. Antenna diameter < 150 cm. Recommended Adapter: AA 9209. [Video: Fastlinks] [Correction]

STLP 9128 D special Opt. 7/16

Option: with 7/16-connector 3 kW

STLP 9128 E

Stacked double Log.-Per. Antenna, typ. gain: 9 dBi, alum. Tubing, high power, (65) 80 -1500 (3000) MHz, N-connector 1 kW, [fastlinks] for quick removal of the rear parts of the antenna. [Video: Fastlinks] Recommended Adapter: AA 9209
[Radiation Pattern] [Correction] [VSWR]

STLP 9128 E Opt. 7/16

Option: with 7/16-connector 3 kW

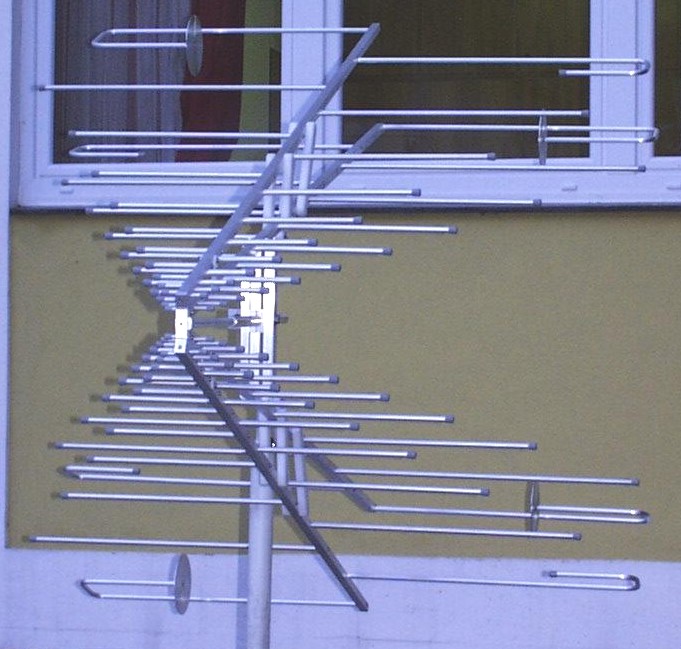

STLP 9128 E special

Like STLP 9128 E but with folded longest elements and smaller structure angle. Antenna diameter < 150 cm. [Fastlinks] for quick removal of the rear parts of the antenna. [Video: Fastlinks] Recommended Adapter: AA 9209 [Picture]

STLP 9128 E special Option 7/16

Option: with 7/16 connector 3 kW

STLP 9148

Stacked double Log.-Per. Antenna, typ. gain: 9 dBi (0.7) 1 – 18 (20) GHz, N-connector
[Radiation Pattern] [Fieldstrength]

STLP 9149

Stacked double Log.-Per. Antenna for IEC 61000-4-3 typ. gain 10.3 dBi, (0,6) 0,7 – 9 (10,5) GHz, N-connector female.
[Radiation Pattern] [Correction] [Fieldstrength]

STLP 100-500

Stacked double Log.-Per. Antenna, typ. Gain: 11 dBi, alum. Tubing, high power, (75) 100 – 500 (550) MHz, 13/30 (f)-connector 5 kW, dimensions: 166x178x402 cm, 52 kg

Biconic Logarithmic Periodic Antennas (Hybrid)

VULB 9160

TRILOG Super Broadband test Antenna, (25) 30 – 1000 (1700) MHz, 10 W
[Dimensions] [Radiation Pattern] [Correction] [VSWR]

VULB 9161

TRILOG Super Broadband test Antenna, 30 – 1000 (2000) MHz, 1 kW
[Dimensions] [Correction] [VSWR] [Fieldstrength]

VULB 9161 SE

TRILOG Super Broadband test Antenna, 30 – 1000 (2000) MHz, 1 kW with short Triangle elements, diameter < 150 cm. [Correction with triangle extensions] [Dimensions]

VULB 9162

TRILOG Broadband Antenna 30 MHz - 7 GHz, 100 W, diameter < 150 cm
[Radiation Pattern] [Correction] [Fieldstrength]

VULB 9163

TRILOG Super Broadband test Antenna, (25) 30 – 3000 (4000) MHz, 100 W (200 W)
[Radiation Pattern] [Correction1] [Correction2] [VSWR] [Fieldstrength]

VULB 9168

TRILOG Super Broadb. Test Antenna, (25) 30-1000 (2000) MHz, 10 W, reduced width, diameter < 1.5 m.
[Dimensions] [Radiation Pattern] [Correction] [VSWR]

Opt. Triext.

Option for VULB 9163, VULB 9161, VULB 9161 SE: angled Triangle Extensions to increase the gain by typ. 6 dB below 70 MHz.

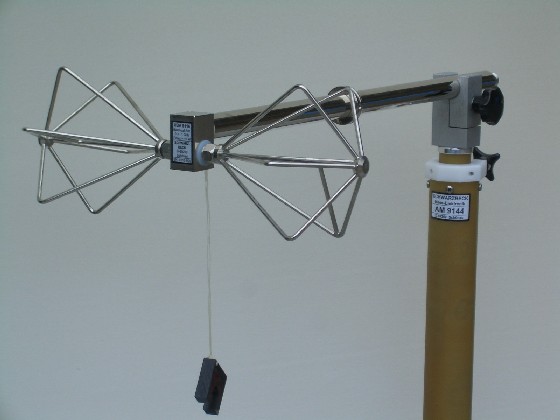

Biconical Antennas

RS 16

Vertical polarized microwave biconical antenna (0,5) 1 – 6 (8,5) GHz with omni directional H-plane pattern.

RE 1790

Vertical polarized VHF- UHF biconical antenna (170) 230 – 1000 (1100) MHz with omni directional H-plane pattern.

RE 4590

Vertical polarized VHF- UHF biconical antenna (330) 450 – 1000 (1100) MHz with omni directional H-plane pattern.

RS 0460

Vertically polarised symmetrical biconical antenna 0,4 – 6 GHz, omnidirectional in the H-plane.

SBA 9113 B

Small Biconical Antenna 80 MHz – 3 GHz for

harmonics measurements acc. to IEC61000-4-3.

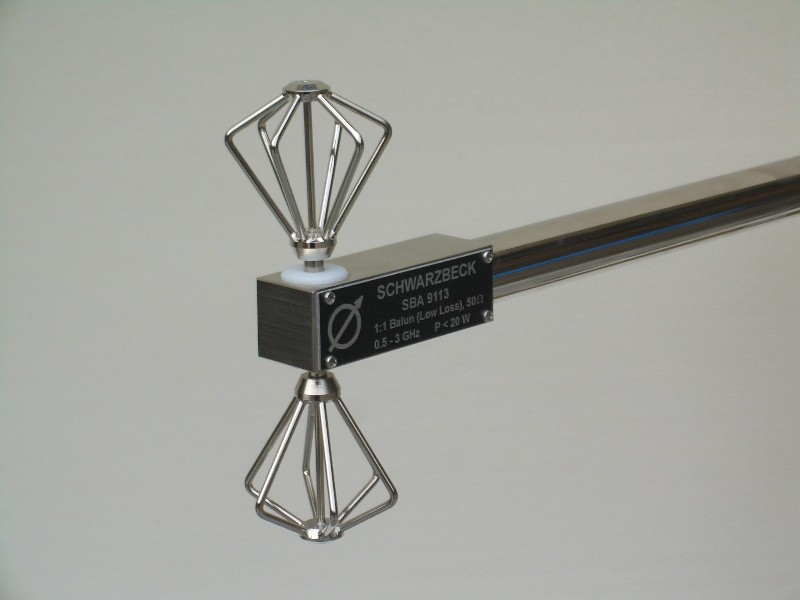

SBA 9113

Small Biconical Microwave Antenna 0.5 – 3 GHz, 20 W. miniversion on request CIS/A/648/CDV CISPR16-1-4:2007-02 Ed. 2.0 Site validation above 1 GHz
[Radiation Pattern] [VSWR] [Fieldstrength] [Picture]

420 NJ

Elements for radiated immunity caused by handy transmitters with SBA 9113 or SBA 9113 mini version for the Ford standard RI115.

420 NJ Opt. Spacer 50

Option for 420 NJ: Spacer made of Polystyrene to set the 420 NJ elements test distance to 50 mm.

SBA 9112

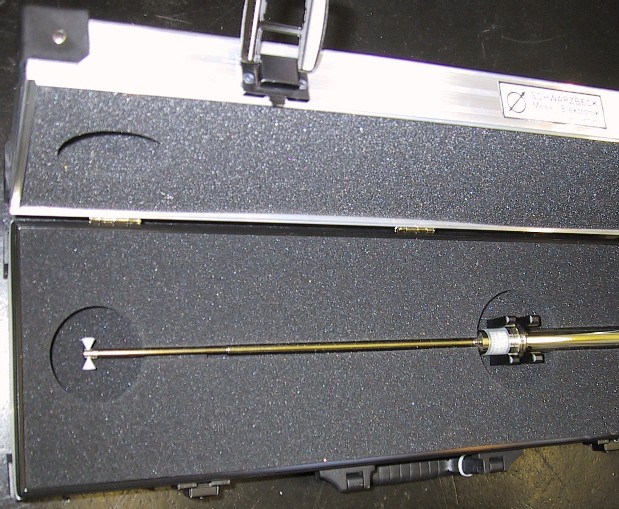

Small Biconical Microwave Antenna (1) 3 – 18 GHz, 10 W including transport case. CIS/A/648/CDV CISPR16-1-4:2007-02 Ed. 2.0 Site validation above 1 GHz. E-plane pattern, H-plane pattern, mini version on request [VSWR] [Fieldstrength] [Picture]

SBA 9119

Small biconical microwave antenna 1 – 6 GHz, 20 W. CIS/A/648/CDV CISPR 16-1-4 Site evaluation above 1 GHz, including transport case.
[Radiation Pattern] [Fieldstrength]
