INS series up to 30kV Impulse/Insulation Tester (절연시험)
 |
Ø INS Series (0.5㎸~ 30㎸)
Ø 0.5㎸ ~ 30㎸ Standard Test Level 절연시험
Ø Solid state 기술을 사용한 안정적인 파형
Ø 다양한 규격 커버가 가능한 넓은 제품군
Ø 내장 전압/전류 모니터링 단자 사용한 절연
파괴 특성 파악
Ø 규격에 맞는 Network 제공
Ø 구매 이후 전압레벨 별도 업그레이드 가능
|
|
|

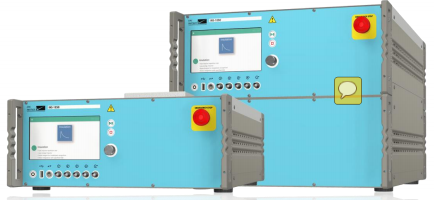

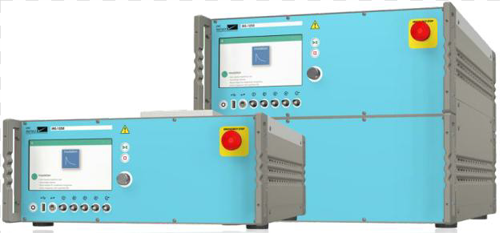

Impulse Insulation Testers from 500 V to 30 kV
 |
A flexible offer
Optimal models corresponding to normative test levels up to 7.5 kV, 15 kV, 22.5 kV or 30 kV. The 7.5 kV model can be subsequently upgraded to 15 kV and the 22.5 kV model can be upgraded to 30 kV. Output impedance can be selected in the range 40 Ω - 4 kΩ (default 40 Ω).
Generators
INS-1250-7K5
7.5 kV impulse 1.2/50 μs, 40 Ω and/or custom output
INS-1250-15K
15 kV impulse 1.2/50 μs, 40 Ω and/or custom output
INS-1250-22K5
22.5 kV impulse 1.2/50 μs, 40 Ω and/or custom output
INS-1250-30K
30 kV impulse 1.2/50 μs, 40 Ω and/or custom output
INS-0805
500 ohm output/ 0.5 J with 0.5 kV, 1 kV, 1.5 kV, 2 kV, 2.5 kV, 3 kV,
4 kV, 5 kV, 6 kV and 8 kV test levels
|
|
|

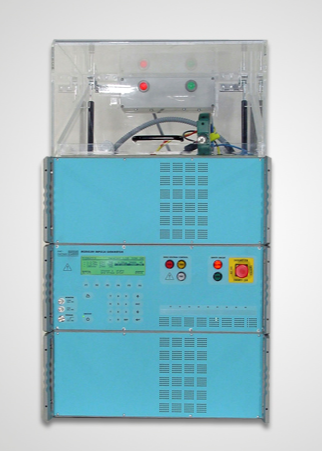

MIG0603CB circuit: ring wave current impulse, 30 Ω, 250 A
 |
IEC60947-2:2003
IEC61008-1: 1996
IEC61009-1:1996 circuit breaker testing
|
|
|
MIG0603CB circuit: surge current impulse 8/20 μs, 4 or 20 Ω, 3 kA
 |
IEC60947-2:2003
IEC61008-1: 1996
IEC61009-1:1996
circuit breaker testing
|
|
|
MIG0603CB circuit: voltage impulse 1.2/50 μs, 50 and 500 Ω, 12 kV
 |
IEC60947-2:2003
IEC61008-1: 1996
IEC61009-1:1996
circuit breaker testing
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|

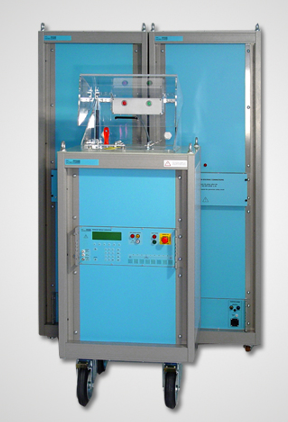

MIG12100 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1
test of SPDs
|
|
|

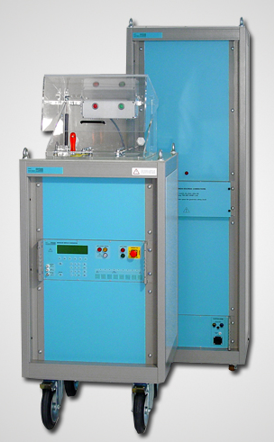

MIG1260 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1
test of SPDs
|
|
|

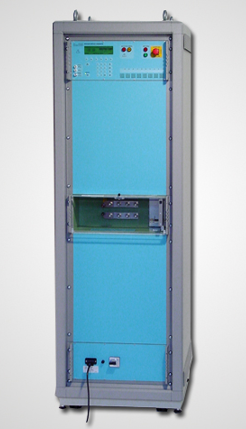

MIG1248 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1
test of SPDs
|
|
|

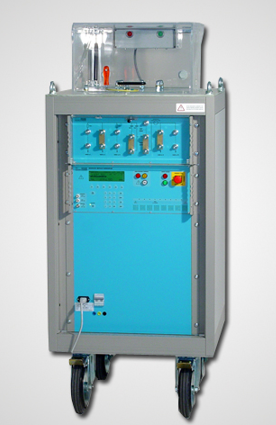

MIG2412SPD circuit: current impulse 8/20 μs, 2 Ω, 12 kA
 |
IEC61643-1, VDE0675-6
test SPDs IEC class I and II (VDE class A,C)
|
|
|
MIG2412SPD circuit: voltage impulse 1.2/50 μs, 42 Ω, 24 kV
 |
IEC61643-1, VDE0675-6
test SPDs IEC class I and II (VDE class A,C)
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG2412SPD circuit: CWG / Surge 2 Ω, 24 kV
 |
IEC61643-1, VDE0675-6,
IEC61000-4-5 latest edition, ANSI C62.41
test IEC class III (VDE class D) SPDs
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|

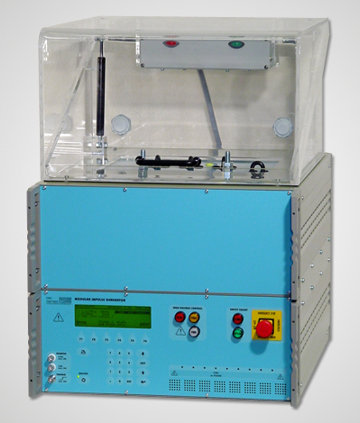

MIG1206SPD circuit: current impulse 8/20 μs, < 2 Ω, 6 kA
 |
IEC61643-1, VDE0675-6
test SPDs IEC class I and II (VDE class A,C)
|
|
|
MIG1206SPD circuit: voltage impulse 1.2/50 μs, 42 Ω, 12 kV
 |
IEC61643-1, VDE0675-6
test SPDs IEC class I and II (VDE class A,C)
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1206SPD circuit: CWG / Surge 2 Ω, coupling 18 μF, 12 kV
 |
IEC61643-1, VDE0675-6
test IEC class III (VDE class D) SPDs
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|

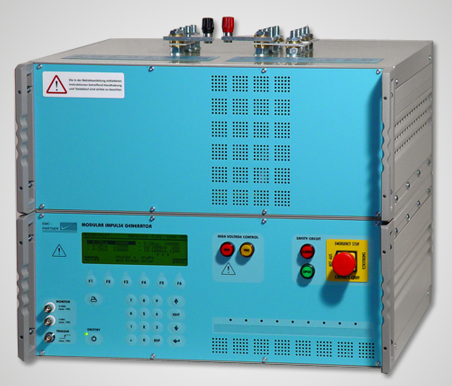

MIG0624LP1 circuit: 10/1000 μs current
 |
IEC60060-1, IEC61643-1
test of varistors (VDR), surge arresters
|
|
|
MIG0624LP1 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1
test of varistors (VDR), surge arresters
|
|
|
MIG0624 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1
test of protection devices for voltage < 1000 V
|
|
|
MIG0612UL circuit: 8/20 μs current
 |
UL 1449, UL 943
test of protection devices for voltage < 1000 V
|
|
|

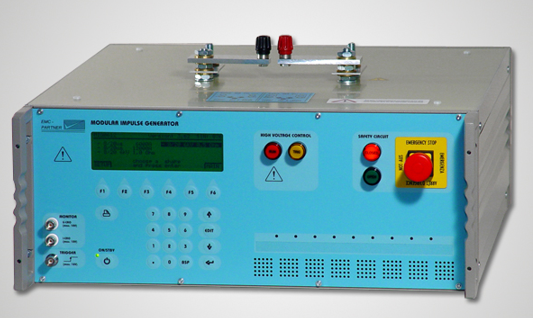

MIG0612 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1
test of protection devices for voltage < 1000 V
|
|
|

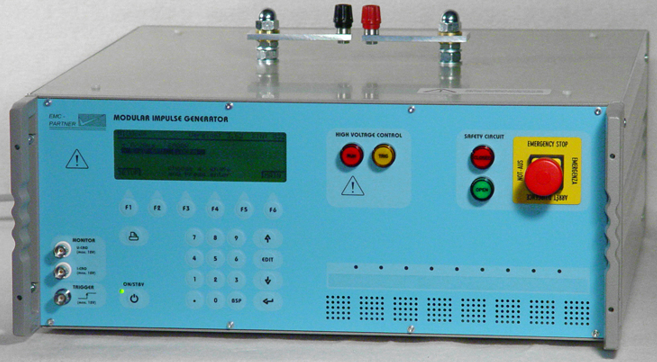

MIG0606 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1, IEC61009-1
test of protection devices for voltage < 1000 V
|
|
|

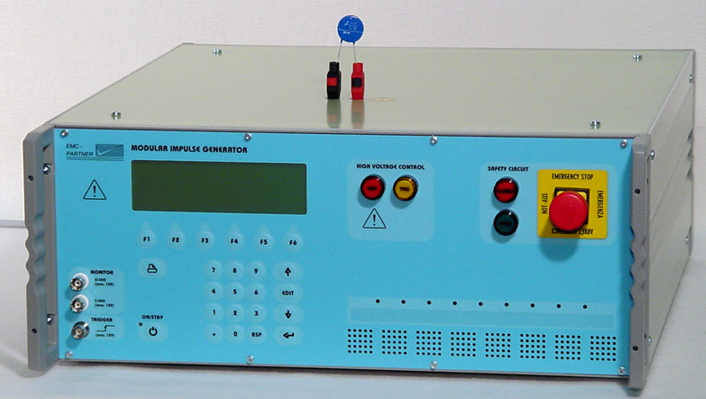

MIG0603CLV2 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1, CCITT K12 surge
test of varistors VDR types 05Dx, 20Dx
|
|
|

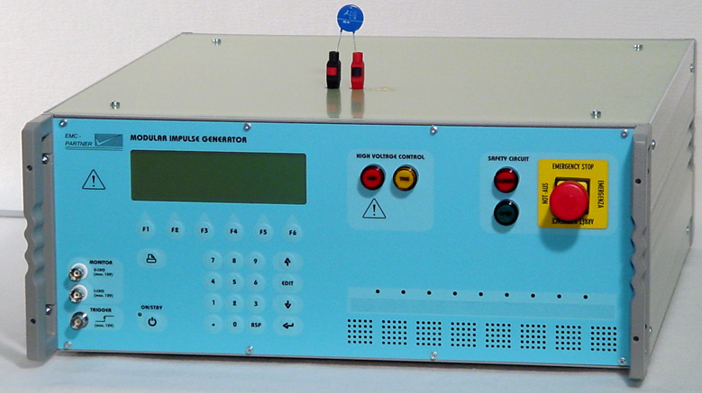

MIG0603CLV1 circuit: 8/20 μs current
 |
IEC60060-1, IEC61643-1, CCITT K12 surge
test of varistors VDR types 05Dx, 20Dx
|
|
|

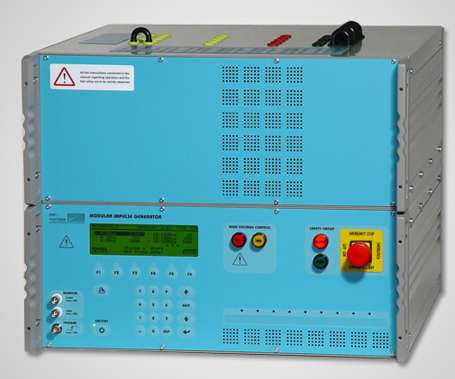

MIG0603CLP circuit: surge CWG 1.2/50 μs & 8/20 μs
 |
IEC61000-4-5
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG0603CLP circuit: 10/1000 μs current
 |
IEC61051-1
|
|
|
MIG0603CLP circuit: 8/20 μs current
 |
IEC61051-1 (varistors)
|
|
|

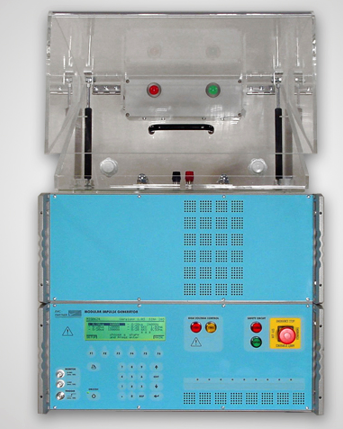

MIG1212CAP circuit: induction test CWG, CT = 20 μF
 |
IEC60384-14, induction test
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1212CAP circuit: tank capacitor CT = 20 μF
 |
IEC60384-14, UL 60384-14, EN132400
in 10 nF: 1.7 μs +50%/-0%, 46 μs +50%/-0%
in 100 nF: 1.6 μs +50%/-0%, 47 μs +50%/-0%
|
|
|
MIG1212CAP circuit: tank capacitor CT = 250 nF
 |
IEC60384-14, UL 60384-14, EN132400
in 10 nF: 1.7 μs +50%/-0%, 46 μs +50%/-0%
in 100 nF: 1.6 μs +50%/-0%, 47 μs +50%/-0%
|
|
|

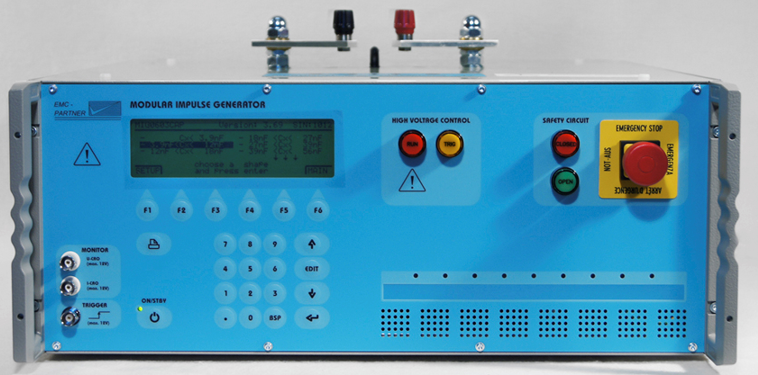

MIG0603CAP circuit: tank capacitor CT = 20 μF
 |
IEC60384-14, UL 60384-14 , EN132400 up to 6 kV
in 10 nF: 1.7 μs +50%/-0%, 46 μs +50%/-0%
in 100 nF: 1.6 μs +50%/-0%, 47 μs +50%/-0%
|
|
|
MIG0603CAP circuit: tank capacitor CT = 250 nF
 |
IEC60384-14, UL 60384-14, EN132400 up to 6 kV
in 10 nF: 1.7 μs +50%/-0%, 46 μs +50%/-0%
in 100 nF: 1.6 μs +50%/-0%, 47 μs +50%/-0%
|
|
|

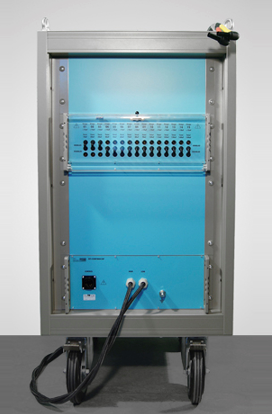

EXT-COMP0804CAP CIRCUIT for 1 μF < CEUT ≤ 50 μF
 |
extends COMP0804CAP for EUTs with higher C
IEC60348-14, UL 60384-14 latest
active flammability test
as in IEC60384-14 figure 2
|
|
|

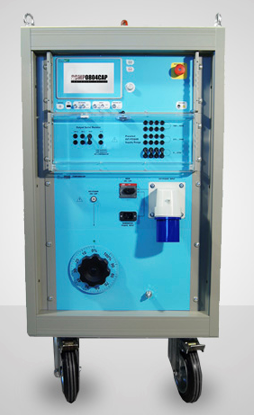

COMP0804CAP
 |
IEC60348-14, UL 60384-14 latest
active flammability test
as in IEC60384-14 figure 2
|
|
|

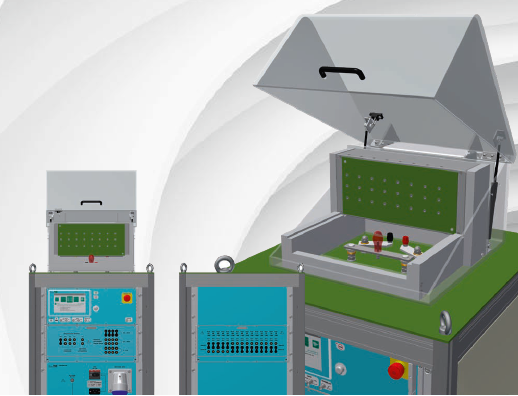

Component Testing
 |
To maintain the quality of lightning and surge protection components used in the
power industry, production and batch testing is applied. This requires specialist test
equipment with high reliability and reproducible test impulses.
EMC PARTNER have an extensive range of impulse test equipment for:
›› Surge Protection Devices (SPD)
›› Varistors (MOV)
›› Gas Discharge Tubes (GDT)
›› Capacitors
›› Resistors
›› Measuring relays
›› Circuit breakers
Expert instrumentation that provides product specific solutions.
|
|
|

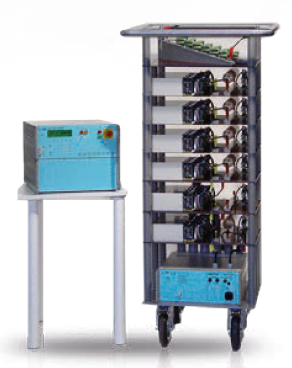

MIG14403 circuit: voltage impulse 1.2/50 μs, 500 Ω, 144 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG14403 circuit: voltage impulse 1.2/50 μs, 48 Ω, 144 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|

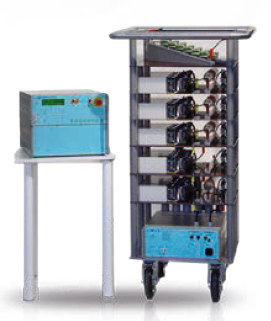

MIG12003 circuit: voltage impulse 1.2/50 μs, 500 Ω, 120 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG12003 circuit: voltage impulse 1.2/50 μs, 32 Ω, 120 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG9603 circuit: voltage impulse 1.2/50 μs, 500 Ω, 96 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG9603 circuit: voltage impulse 1.2/50 μs, 32 Ω, 96 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG7203 circuit: voltage impulse 1.2/50 μs, 500 Ω, 72 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG7203 circuit: voltage impulse 1.2/50 μs, 24 Ω, 72 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|

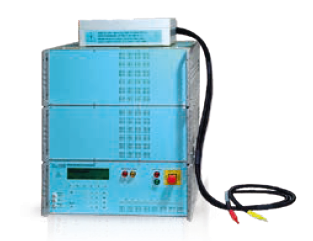

MIG4803 circuit: Surge 50 Ω, 6 kV
 |
IEC61000-4-5 latest
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG4803 circuit: CWG / Surge 2 Ω, 6 kV
 |
IEC61000-4-5 latest
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20
|
|
|
MIG4803 circuit: voltage impulse 1.2/50 μs, 50 Ω, 48 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG4803 circuit: voltage impulse 1.2/50 μs, 16 Ω, 48 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG3603C circuit: CWG / Surge 2 Ω, 6 kV
 |
IEC61000-4-5 latest
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG3603C circuit: voltage impulse 1.2/50 μs, 500 Ω, 6 kV
 |
IEC60355-1
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG3603C circuit: voltage impulse 1.2/50 μs, 500 Ω, 36 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG3603C circuit: voltage impulse 1.2/50 μs, 12 Ω, 36 kV
 |
IEC60060-1, IEC61010-1,
IEC60355-1, IEC61180-1, latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|

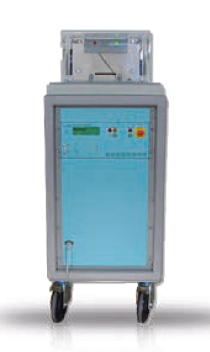

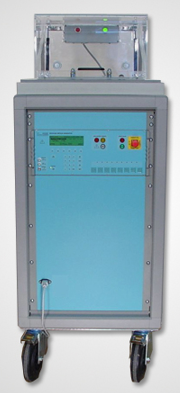

MIG2412 circuit: CWG / Surge 24 kV
 |
IEC61000-4-5, ANSI C62.41, IEC60060-1,
IEC61180-1, -2, IEC61643-1 Part 1/Class III
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG2403 circuit: voltage impulse 1.2/50 μs, 24 kV
 |
IEC60060-1, IEC61010-1,
IEC61180-1, IEC61180-2, latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1809 circuit: CWG / Surge 18 kV
 |
IEC60060-1, IEC61180-1,
IEC61643-1 Part 1/Class III
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|

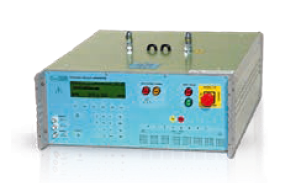

MIG1803-12 circuit: voltage impulse 1.2/50 μs, 12 Ω, 500 Ω, 18 kV
 |
IEC60060-1, IEC61010-1 latest editions
IEC60335-1 (old and new editions)
insulation test (also for household equipment)
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1803 circuit: voltage impulse 1.2/50 μs, 18 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1203CWG circuit: CWG / Surge 2 Ω, 6 kV
 |
IEC61000-4-5 latest edition
recommended for electricity meter testing
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1203CWG circuit: voltage impulse 1.2/50 μs, 4 Ω, 12 kV
 |
IEC60060-1, IEC61010-1, IEC60335-1
recommended for household equip. testing
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1203CWG circuit: voltage impulse 1.2/50 μs, 40 Ω, 12 kV
 |
IEC60060-1, IEC61010-1 latest editions
recommended for electricity meter testing
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1203STEP circuit: STEP voltage impulse, 12 kV
 |
IEC/EN 60065, IEC/EN 60950, UL1635
to be used with special NWs, not standalone
rise time: tr < 1 μs
duration 50 % – 50 %: td > 1000 μs
|
|
|
MIG1203STEP circuit: voltage impulse 1.2/50 μs, 12 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG1203 circuit: voltage impulse 1.2/50 μs, 12 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
|
MIG0603 circuit: voltage impulse 1.2/50 μs, 6 kV
 |
IEC60060-1, IEC61010-1 latest editions
test insulation against voltage impulse
1.2 μs ± 30 % / 50 μs ± 20 %
|
|
